Battery Powered Hydraulic Crimping Tools Manufacturers

Press range: φ16mm - φ32mm (corresponding to 0.63in - 1.25in) - covers the mainstream pipe diameters in home decoration, including four core specifications of 16/20/25/32mm
Power type: Manual hydraulic / Pure mechanical  The hydraulic model has a stronger press force (3-8t), while the mechanical model is more lightweight
Press force: 3t - 8t (for hydraulic model); manual mechanical force (for mechanical model)  The hydraulic model amplifies pressure through hydraulic transmission, meeting the toughness requirements of PEX pipes
Stroke: 16mm - 45mm  The hydraulic model has a shorter stroke (16 - 29mm), while the mechanical model has a longer stroke (45mm)

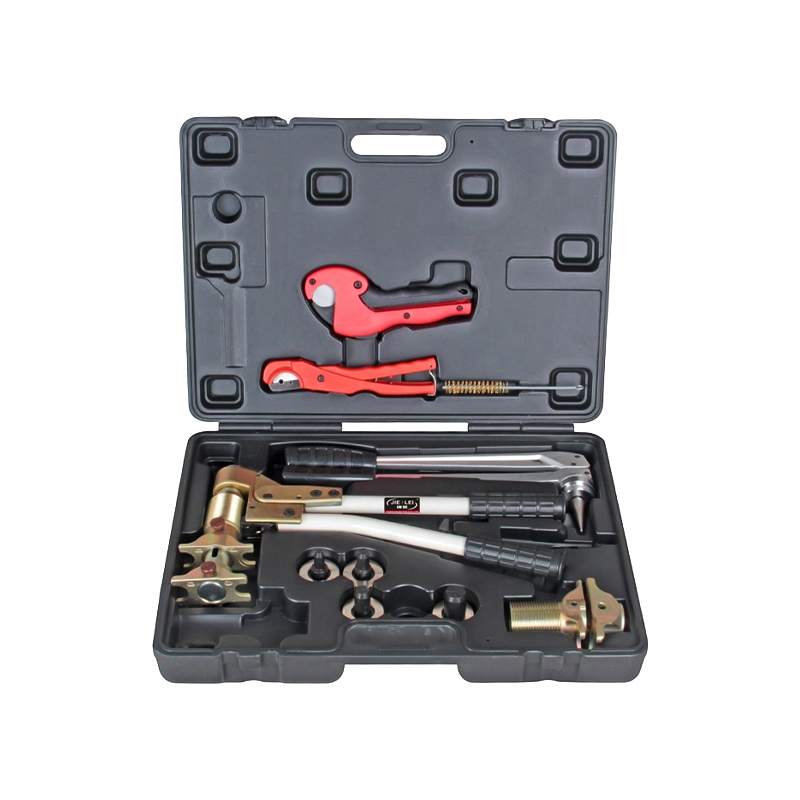

Overall weight: 4.5kg - 8.2kg  Includes a complete set of molds and accessories, and is easy to carry with a plastic storage box
Main material: Aluminum alloy  Balances strength and lightweight, avoiding tool weight causing operational fatigue                                                                                                        Main compression pliers

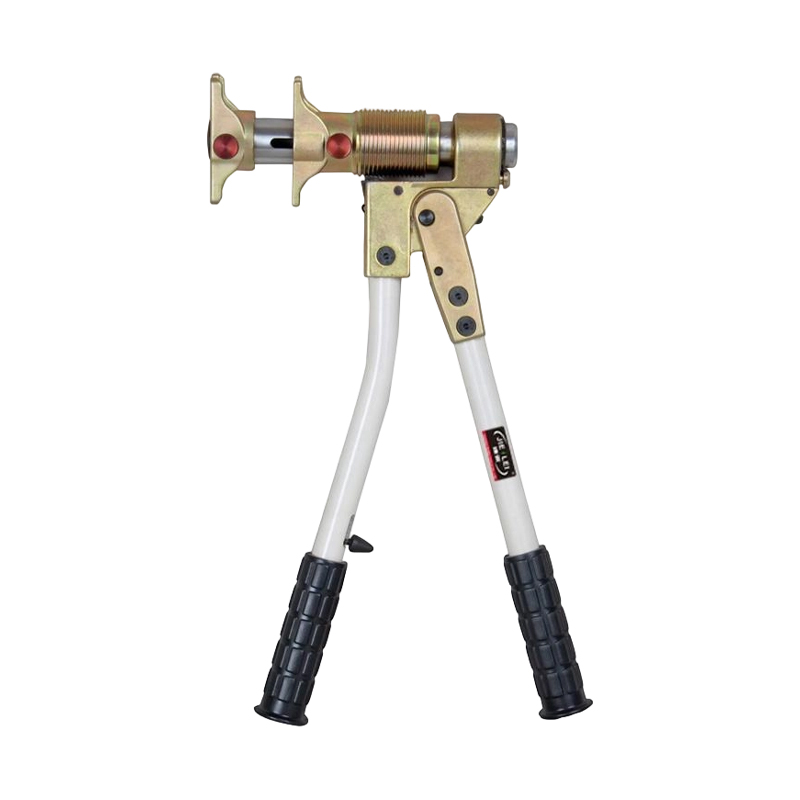

Hydraulic type: Equipped with an internal hydraulic cylinder, it achieves uniform compression by applying pressure through the handle. Some models come with a pressure adjustment knob (to prevent overpressure damage to the pipe material);
Mechanical type: Utilizes a ratchet transmission mechanism. Manual reciprocating pressing of the handle completes the compression. No hydraulic oil maintenance is required.

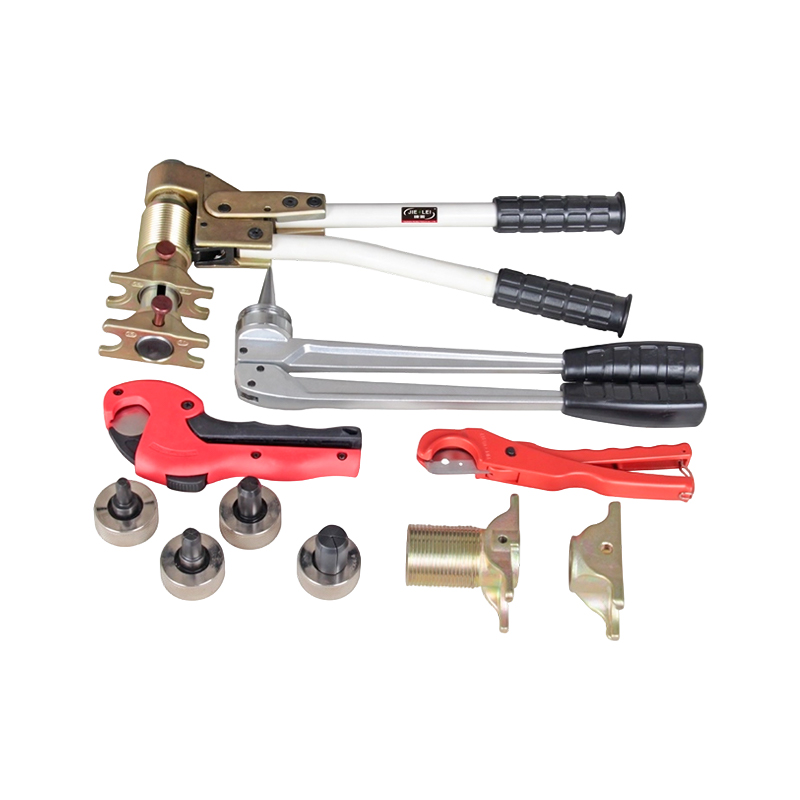

Various specification molds (core components)
Molds are divided into "compression molds" and "expansion molds", suitable for different pipe connection requirements:
Compression molds: Include two sets of dual specifications of 16-20mm and 25-32mm (no frequent replacement required), some models have subdivided sliding tightening molds (specific for Flex Pipe: 16×2.2mm, 20×2.8mm, etc.) and stable molds (specific for Stabil Pipe: 16×2.6mm, 20×2.9mm, etc.), ensuring the sealing performance of different PEX pipes;
Expansion molds: Four specifications of 16/20/25/32mm, used to expand the end of the PEX pipe, facilitating the plug-in connection with pipe fittings. The expanded pipe diameter is uniform without cracks.

Auxiliary tools

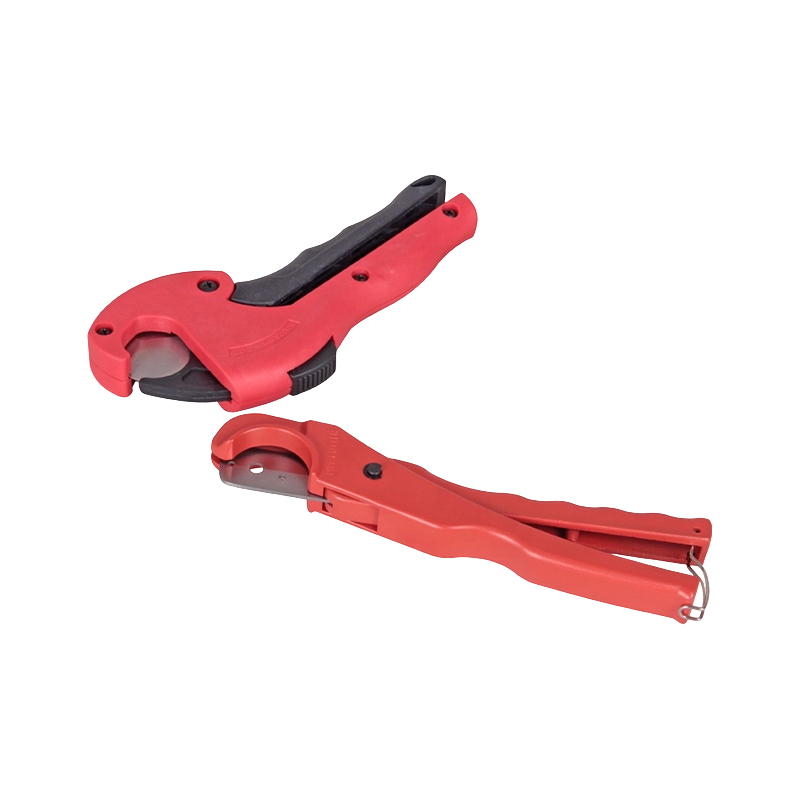

Ratchet pipe cutter: Precisely cuts PEX/PVC pipes, with smooth cuts without burrs, avoiding connection leakage due to skewed cuts;

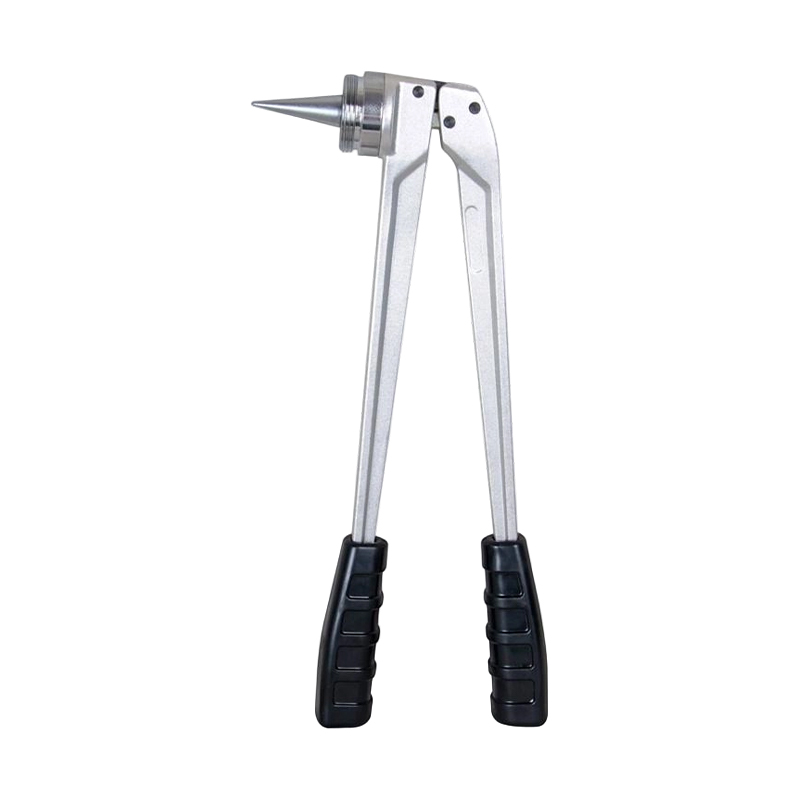

Expansion pliers: Used in conjunction with expansion molds, a single stroke can complete uniform expansion, improving operational efficiency;
Cleaning brush: Used to clean the debris from the cut pipes, ensuring no impurities affect the seal during expansion and compression.

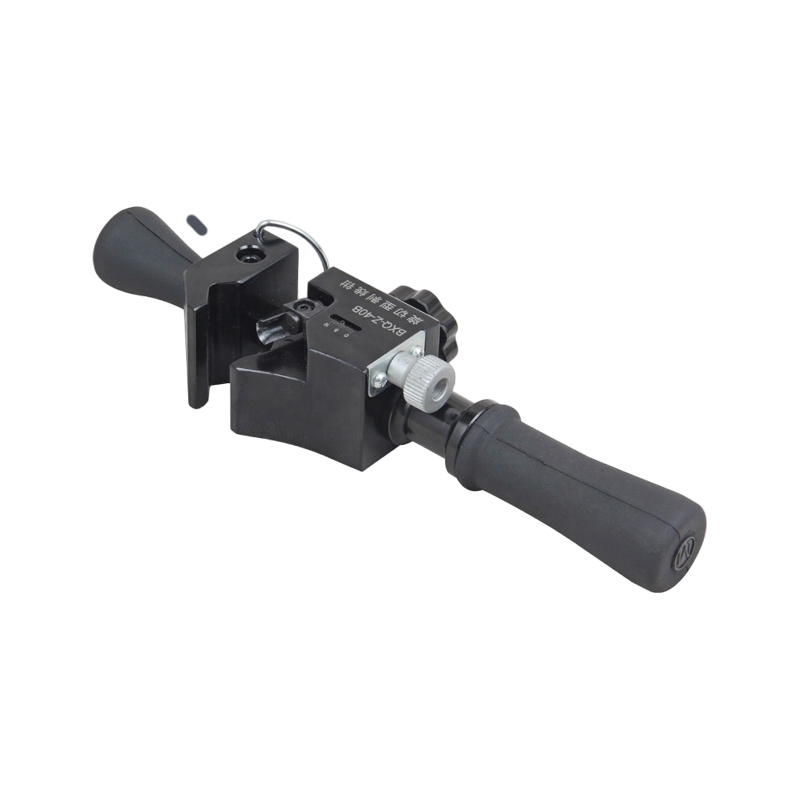

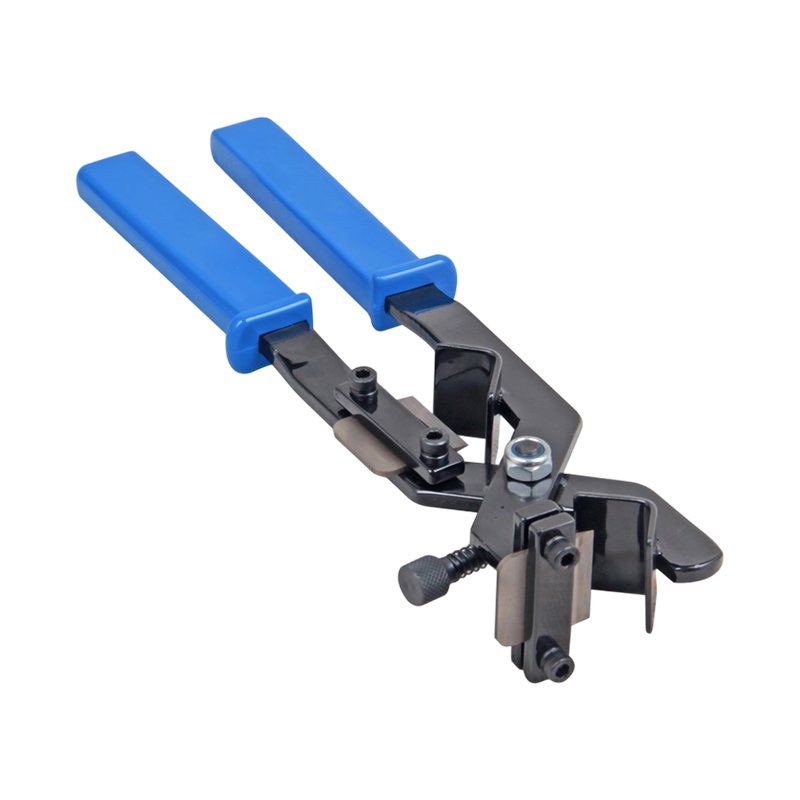

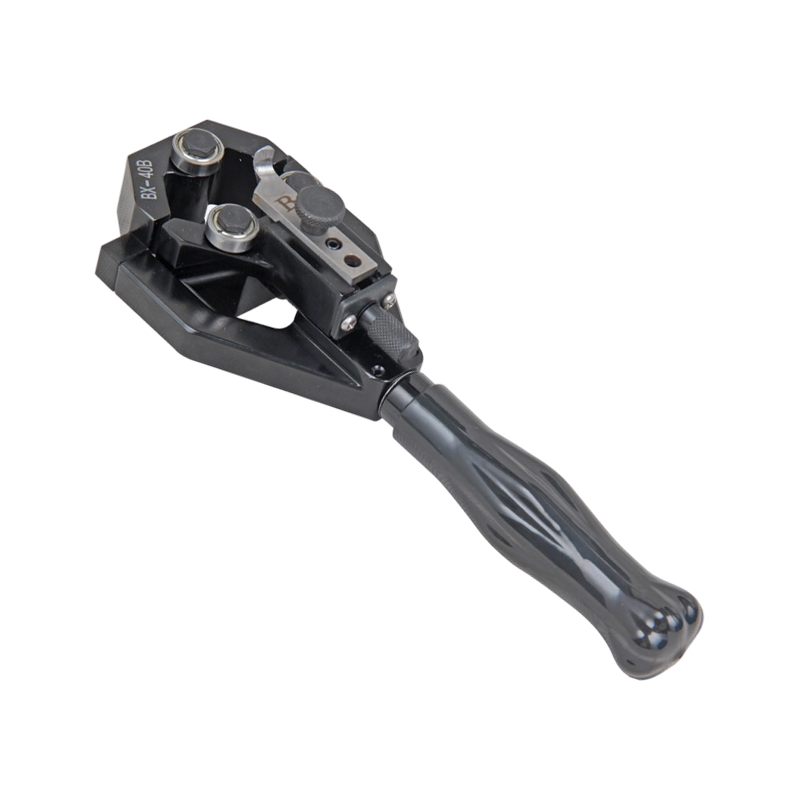

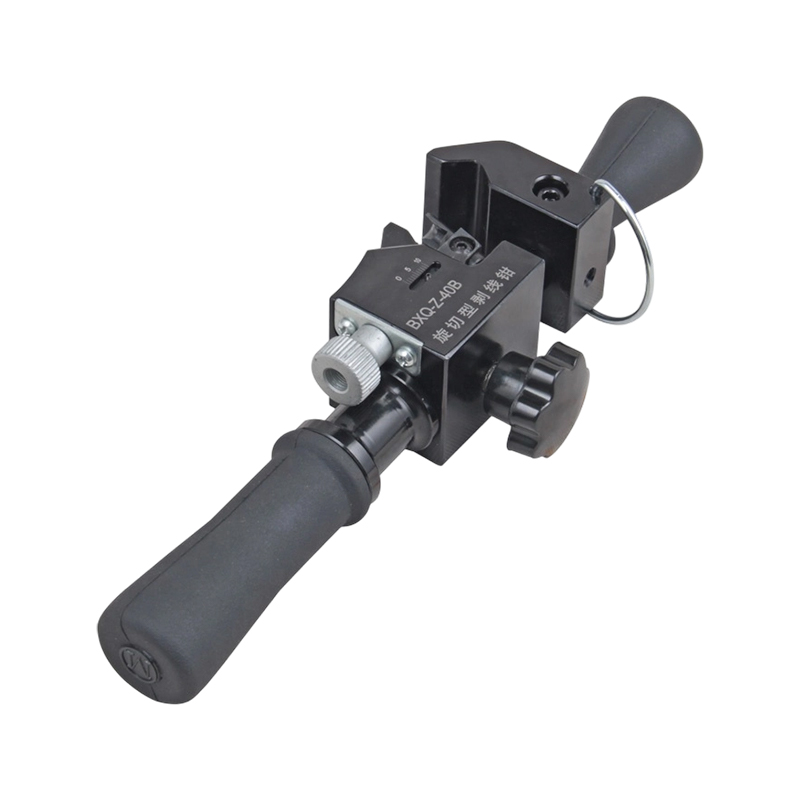

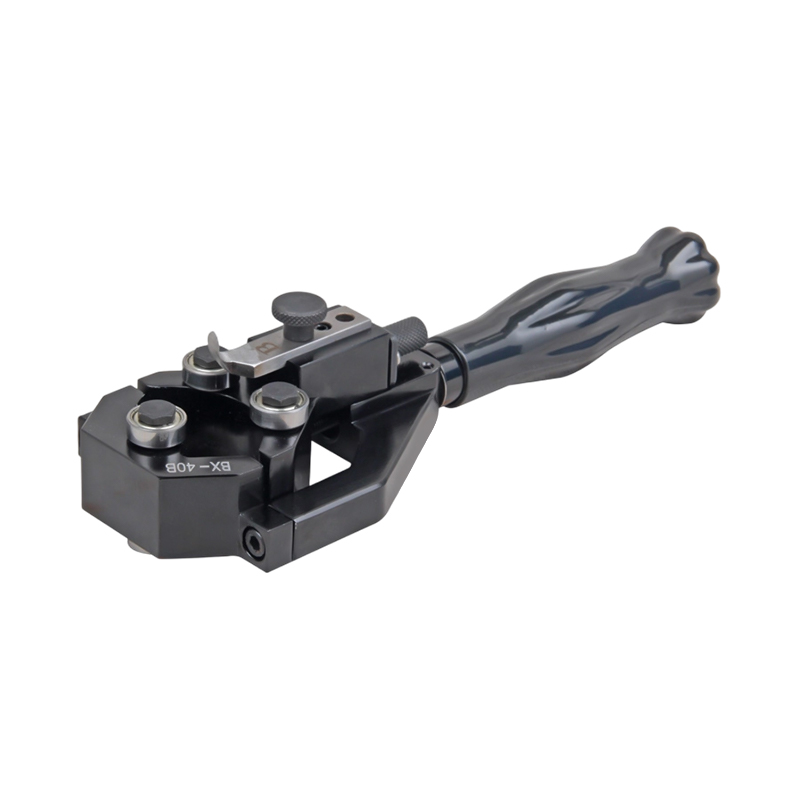

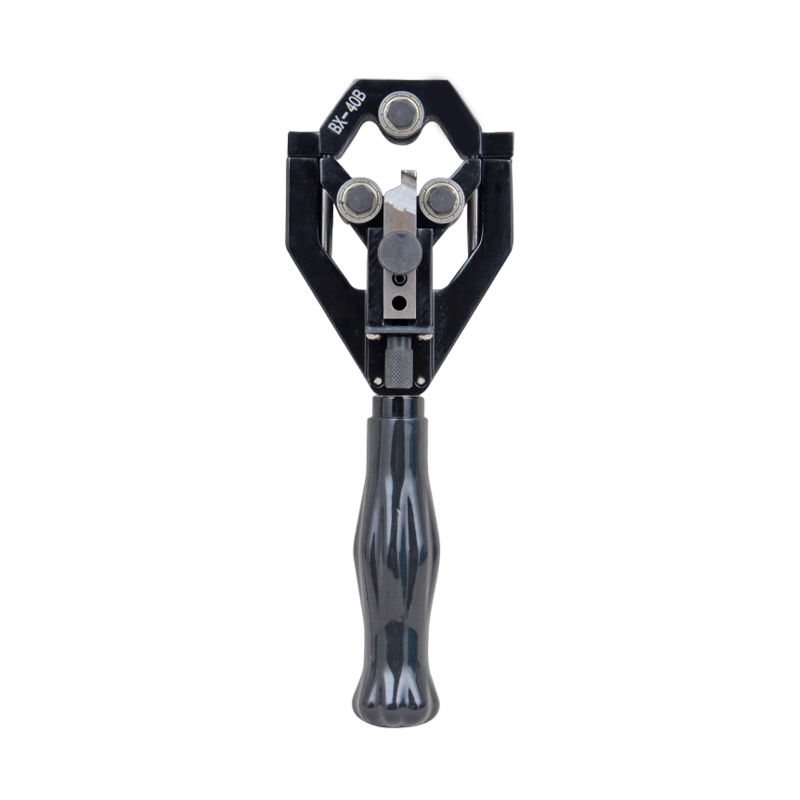

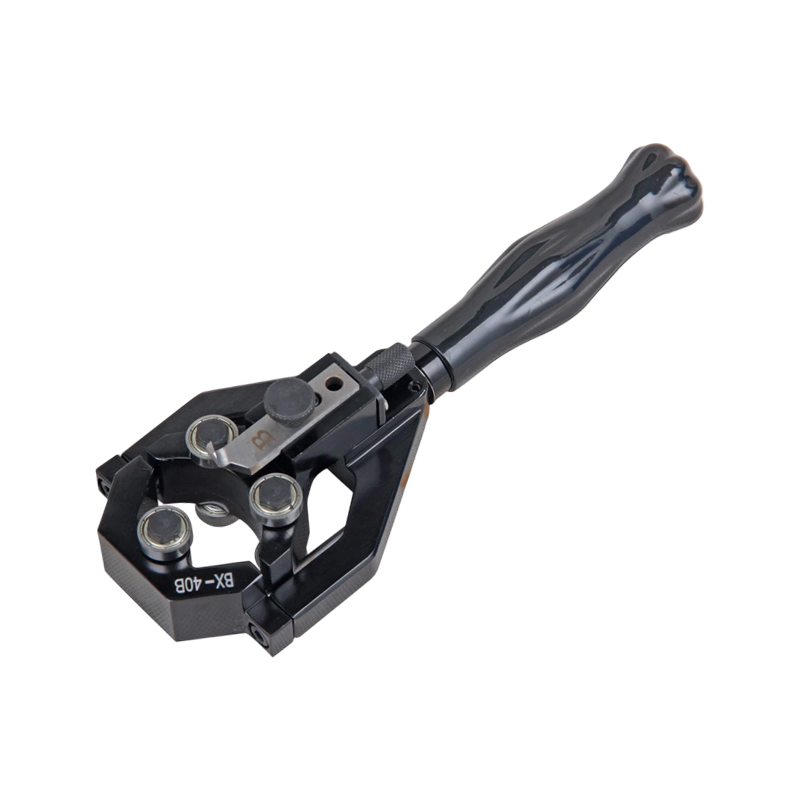

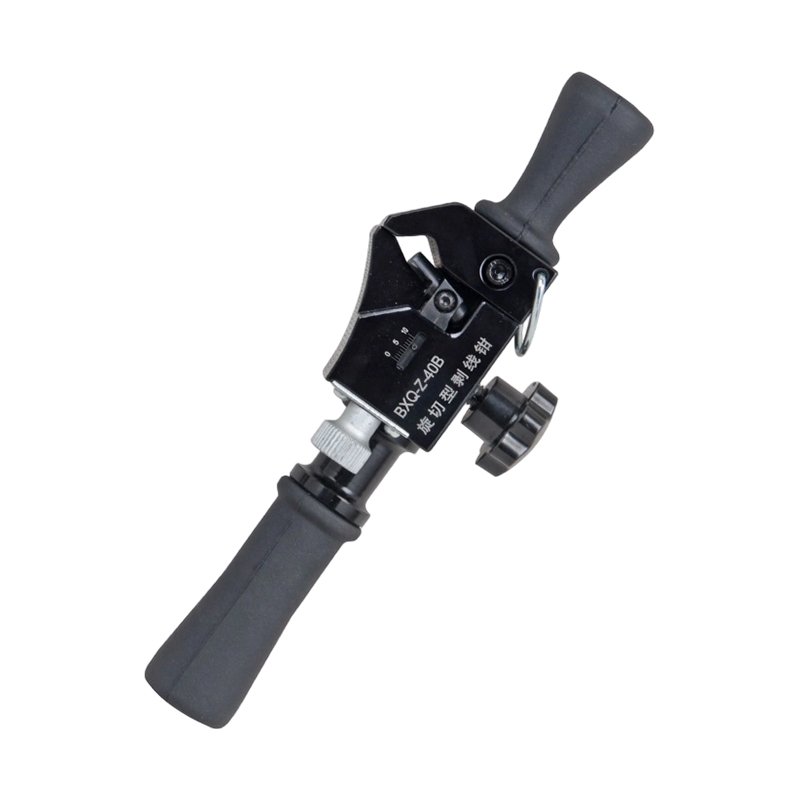

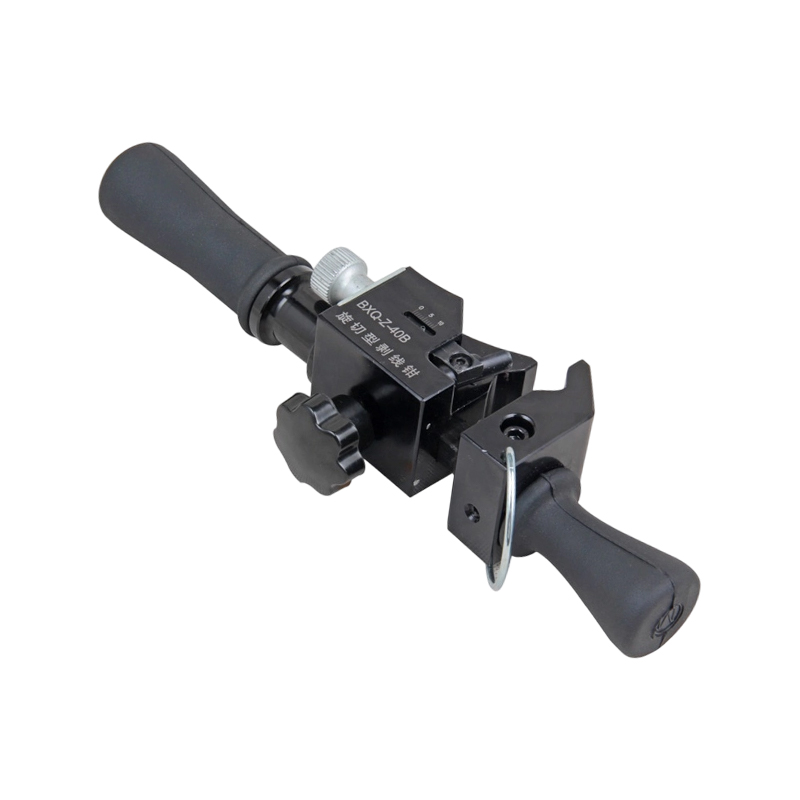

Strip range: Cable diameter φ20mm - φ40mm. Suitable for 10KV high-voltage cables, covering insulation layers of cables with a cross-sectional area of 70 - 400mm².
Strip objects: Main insulation layer, semiconductor shielding layer. Specifically designed for the double-layer structure of high-voltage cables, capable of precisely removing the surface insulation layer and the inner semiconductor layer.
Strip thickness: Terminal strip ≤ 6mm; Middle section strip ≤ 4mm. To avoid excessive strip thickness causing tool wear or cable damage, some models have a scale adjustment function.
Overall size: Approximately 280mm × 85mm × 55mm. Compact design for easy portability, suitable for high-altitude operation scenarios.
Weight: Approximately 0.8kg. Lightweight design to reduce hand fatigue during long-term operation.
Blade material: White steel / Alloy steel. High hardness material (hardness can reach HRC55 or above after heat treatment), sharp and wear-resistant, replaceable separately.
Operation mode: Manual rotary cutting type. Apply thrust through the handle and rotate to cut, control the strip depth through the feed adjustment knob.

Strip range: Cable diameter φ20mm - φ40mm. Suitable for 10KV high-voltage cables, covering insulation layers of cables with a cross-sectional area of 70 - 400mm².
Strip objects: Main insulation layer, semiconductor shielding layer. Specifically designed for the double-layer structure of high-voltage cables, capable of precisely removing the surface insulation layer and the inner semiconductor layer.
Strip thickness: Terminal strip ≤ 6mm; Middle section strip ≤ 4mm. To avoid excessive strip thickness causing tool wear or cable damage, some models have a scale adjustment function.
Overall size: Approximately 280mm × 85mm × 55mm. Compact design for easy portability, suitable for high-altitude operation scenarios.
Weight: Approximately 0.8kg. Lightweight design to reduce hand fatigue during long-term operation.
Blade material: White steel / Alloy steel. High hardness material (hardness can reach HRC55 or above after heat treatment), sharp and wear-resistant, replaceable separately.
Operation mode: Manual rotary cutting type. Apply thrust through the handle and rotate to cut, control the strip depth through the feed adjustment knob.

Strip range: Cable diameter φ20mm - φ40mm. Suitable for 10KV high-voltage cables, covering insulation layers of cables with a cross-sectional area of 70 - 400mm².
Strip objects: Main insulation layer, semiconductor shielding layer. Specifically designed for the double-layer structure of high-voltage cables, capable of precisely removing the surface insulation layer and the inner semiconductor layer.
Strip thickness: Terminal strip ≤ 6mm; Middle section strip ≤ 4mm. To avoid excessive strip thickness causing tool wear or cable damage, some models have a scale adjustment function.
Overall size: Approximately 280mm × 85mm × 55mm. Compact design for easy portability, suitable for high-altitude operation scenarios.
Weight: Approximately 0.8kg. Lightweight design to reduce hand fatigue during long-term operation.
Blade material: White steel / Alloy steel. High hardness material (hardness can reach HRC55 or above after heat treatment), sharp and wear-resistant, replaceable separately.
Operation mode: Manual rotary cutting type. Apply thrust through the handle and rotate to cut, control the strip depth through the feed adjustment knob.

Cutting range: 24-32mm on both sides (corresponding to nut sizes M14-M24) - covers commonly used medium and large-sized nuts in industry. Some upgraded models (EZ-2432A) can extend to M10-M24 (24mm on both sides), suitable for more scenarios.
Power type: Electric hydraulic drive - Built-in hydraulic cylinder, pressurized by an electric pump to achieve efficient cutting. Some models support manual hydraulic emergency operation.
Rated output: 120KN (approximately 12 tons) - High-strength hydraulic output can easily break steel nuts with hardness ≤ HRc44, avoiding problems such as "slipping" and "breaking the bolt" with traditional wrenches.
Overall weight: 6.8kg - 6.9kg - Balances power and portability. Operated by a single person, it can be handheld. Combined with a storage box, it is convenient for on-site carrying.
Toolhead material: Alloy tool steel (such as CR12MOV) - The toolhead is hardened through heat treatment, with high sharpness and wear resistance. After wear, it can be re-ground and reused, reducing maintenance costs.
Working pressure: 700bar (approximately 70MPa) - The hydraulic system pressure is stable, ensuring uniform force distribution during the cutting process and avoiding splintering and flying of the nuts.
Overall dimensions: Approximately 290mm × 150mm × 80mm - Compact structure suitable for narrow spaces (such as nuts in the gap of equipment), with better operational flexibility than large-scale cutting equipment.

This rotatable hydraulic crimping head is a universal swivel jaw specially designed for V15, V18, V22, and V28 European standard pipe fittings. It allows flexible angle adjustment during crimping, ensuring precise alignment between the crimping tool and the pipe fitting. The swivel structure improves accessibility in tight or complex installation spaces, making pipe crimping faster, safer, and more efficient.

This universal 360° rotatable press jaw head features a ring-type design and is compatible with Milwaukee, RIDGID, and most hydraulic press tools, meeting AU standard requirements. It is specially designed for pipe crimping applications, allowing flexible angle adjustment during crimping to ensure precise alignment between the press tool and the pipe fitting. The swivel structure improves accessibility in tight or complex installation spaces, making pipe crimping faster, safer, and more efficient.

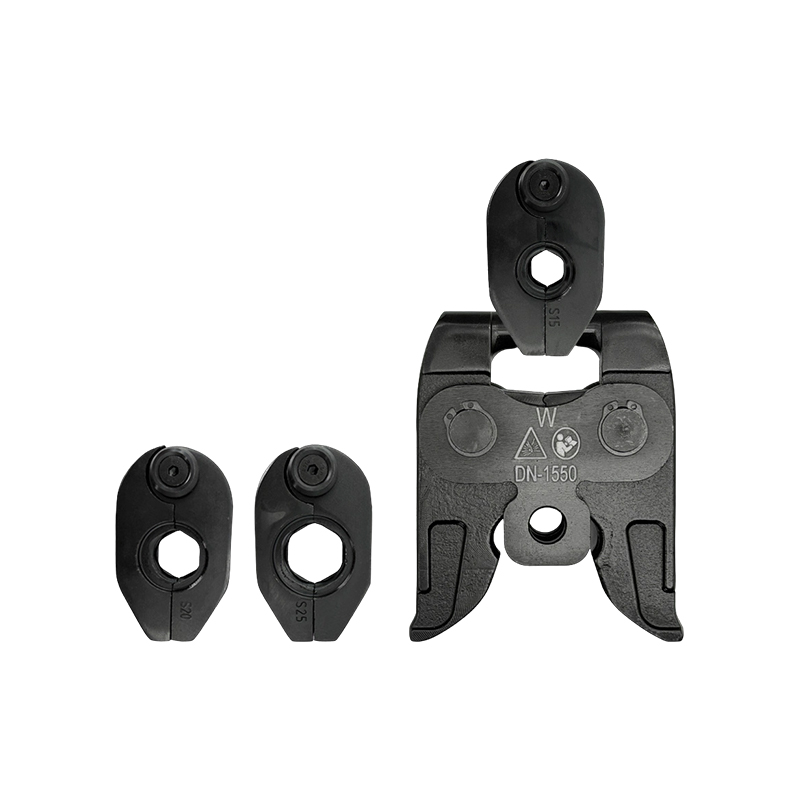

This new 360° rotatable copper pipe press jaw head, built to VUS standard and compatible with most hydraulic crimping tools, is engineered for professional pipe crimping. Designed to meet US plumbing and industrial standards, its 360° swivel base allows flexible positioning, making it easy to work in tight or hard-to-reach spaces. Precision-machined jaws provide consistent and reliable crimps on stainless steel, copper, and PEX-aluminum pipes, ensuring leak-free connections every time.
