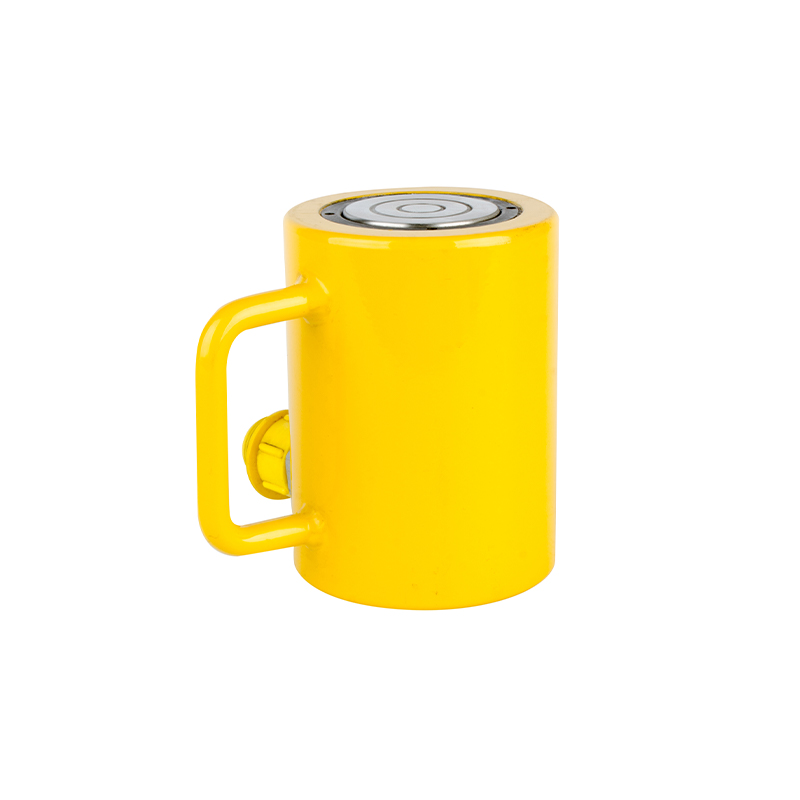

The Cylinder is an essential mechanical component used in various industries, playing a crucial role in converting energy into mechanical force. This product is widely applied in applications such as engines, hydraulic systems, and pneumatic systems, making it a versatile choice for numerous sectors.
Advantages of the Cylinder
Versatility
The Cylinder is known for its adaptability across different industries. Whether in manufacturing, automotive, or industrial machinery, the Cylinder can be tailored to meet specific requirements, making it an invaluable component in many systems.
Efficiency
One of the main advantages of the Cylinder is its ability to convert energy into mechanical motion efficiently. This efficiency translates into better performance and lower energy consumption in various applications, making it an economical choice for businesses.
Durability
Durability is a key characteristic of the Cylinder. Constructed from high-quality materials, the Cylinder is designed to withstand harsh working conditions, ensuring a long operational life and reducing the need for frequent replacements.
Key Features of the Cylinder
Material Quality
The Cylinder is crafted from robust materials such as steel, aluminum, or composite materials, ensuring that it can handle high-pressure environments. The choice of material also allows for customization based on the specific needs of the application.
Precision Engineering
Precision is vital in the functioning of a Cylinder. The product is designed with tight tolerances, ensuring that it operates smoothly and efficiently in any system. This precision wear and tear, contributes to the overall longevity of the Cylinder.
Customizable Design
The Cylinder can be customized to fit various applications. Whether you require a specific size, stroke length, or pressure capacity, the Cylinder can be tailored to meet these requirements, providing flexibility and ensuring performance in its intended use.
Applications of the Cylinder
Automotive Industry
In the automotive industry, the Cylinder is a critical component in engines and braking systems. Its ability to convert energy into mechanical motion efficiently makes it ideal for powering various vehicle systems.
Manufacturing and Automation
The Cylinder is widely used in manufacturing and automation. From controlling robotic arms to powering conveyor systems, the Cylinder is indispensable in creating efficient and automated production lines.
Hydraulic and Pneumatic Systems
In hydraulic and pneumatic systems, the Cylinder plays a pivotal role in generating force and motion. Its ability to operate under high pressure makes it an essential component in these systems, enabling them to perform heavy-duty tasks with ease.
Reasons to Choose the Cylinder
Reliability
Choosing the Cylinder means opting for a reliable product that consistently delivers high performance. Its design and material selection ensure that it can withstand the demands of various applications, providing peace of mind to users.
Cost-Effectiveness
The Cylinder offers a cost-effective solution for those looking to enhance their systems. Its efficiency in energy conversion and durability means that users can save on energy costs and reduce maintenance expenses over time.
Widespread Availability
The Cylinder is readily available in the market, making it easy to source replacements or additional units as needed. Its widespread use across industries also means that finding compatible components and accessories is straightforward, ensuring smooth integration into existing systems.
Summary
The Cylinder is a vital component in many industries, offering versatility, efficiency, and durability. With its customizable design and precision engineering, the Cylinder can be tailored to meet the specific needs of various applications, from automotive to manufacturing. Its widespread use and availability make it a reliable and cost-effective choice for businesses looking to optimize their systems. Whether in hydraulic, pneumatic, or mechanical applications, the Cylinder stands out as a key element in ensuring smooth and efficient operations.

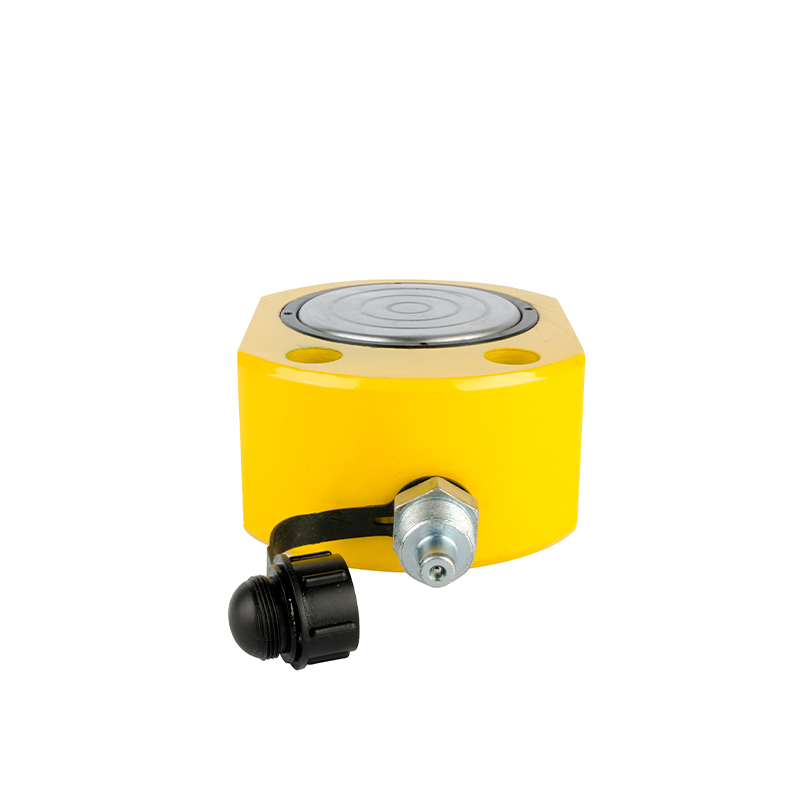

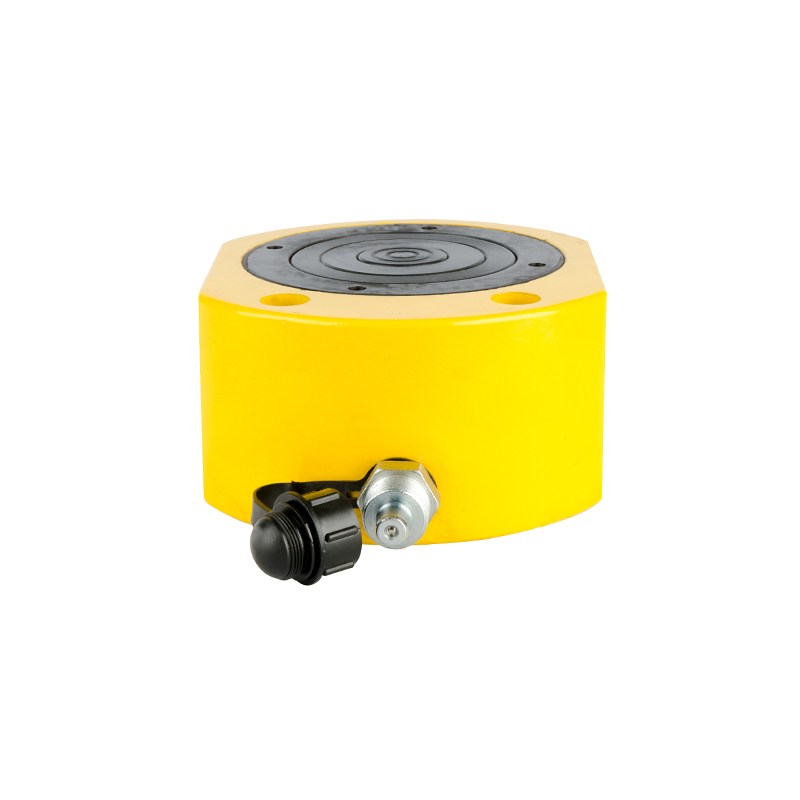

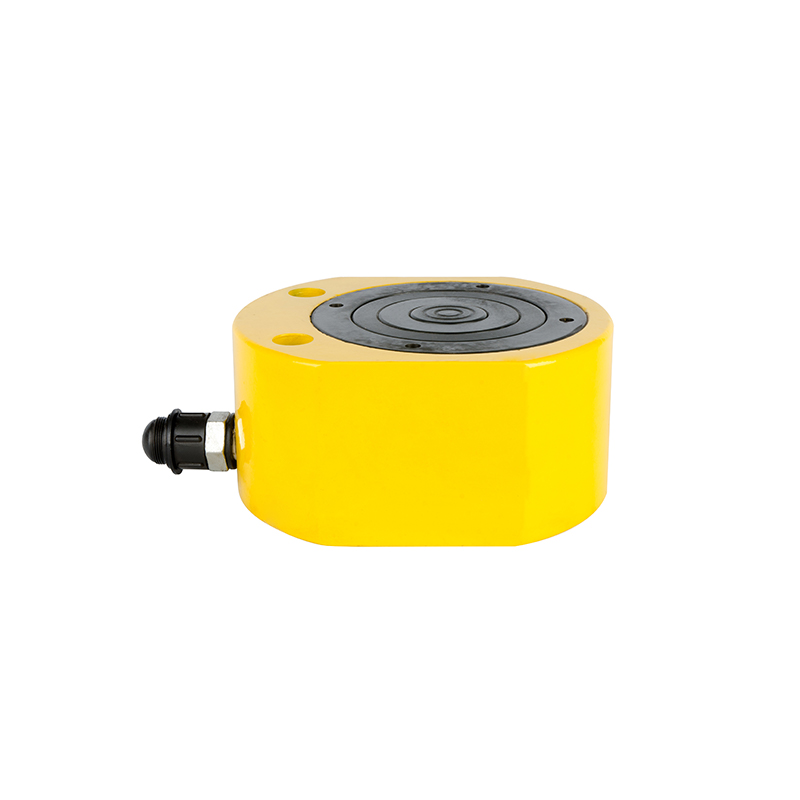

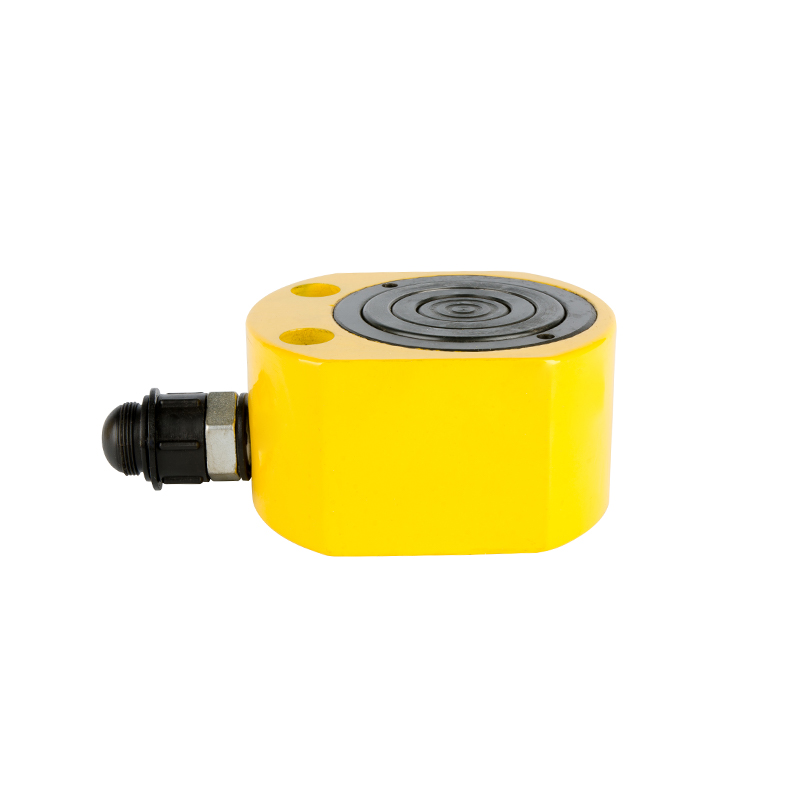

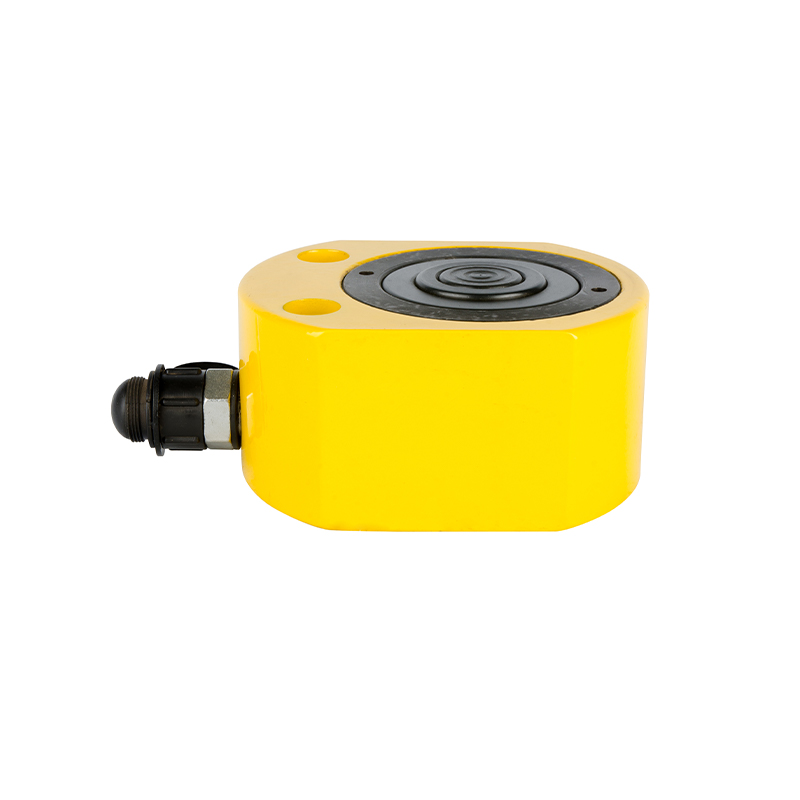

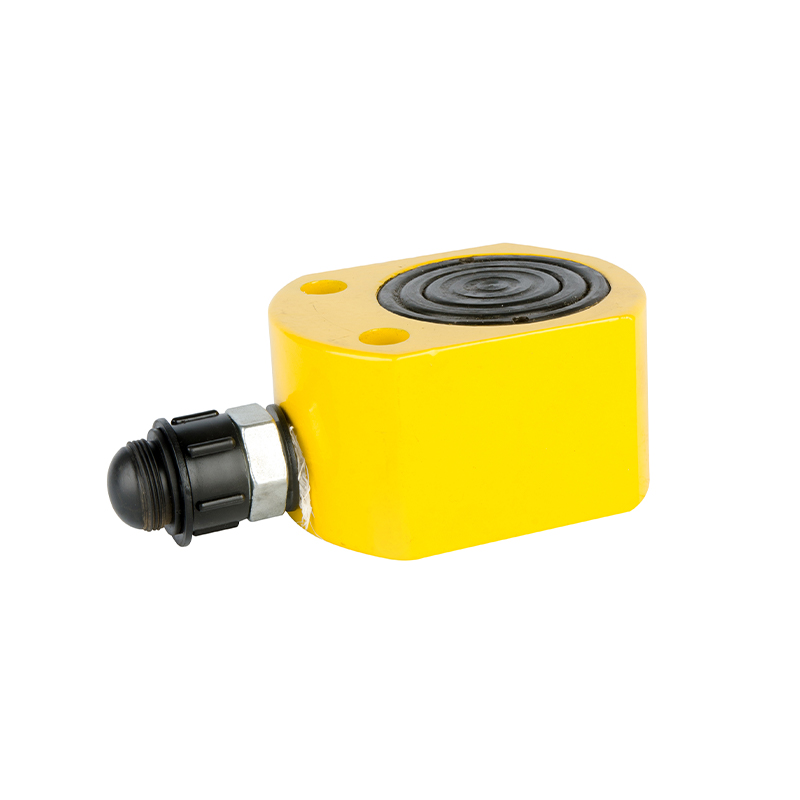

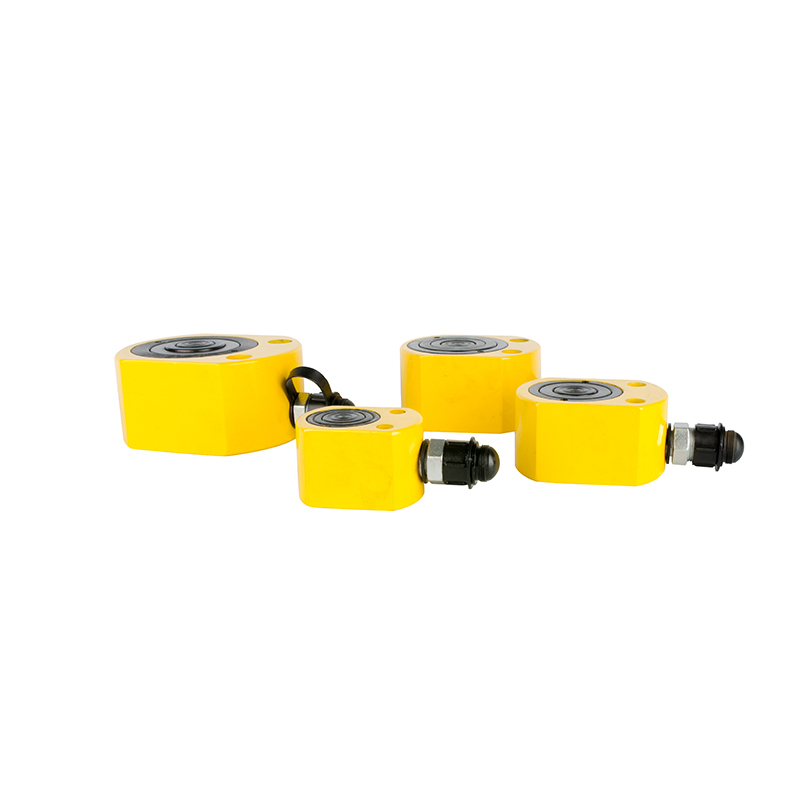

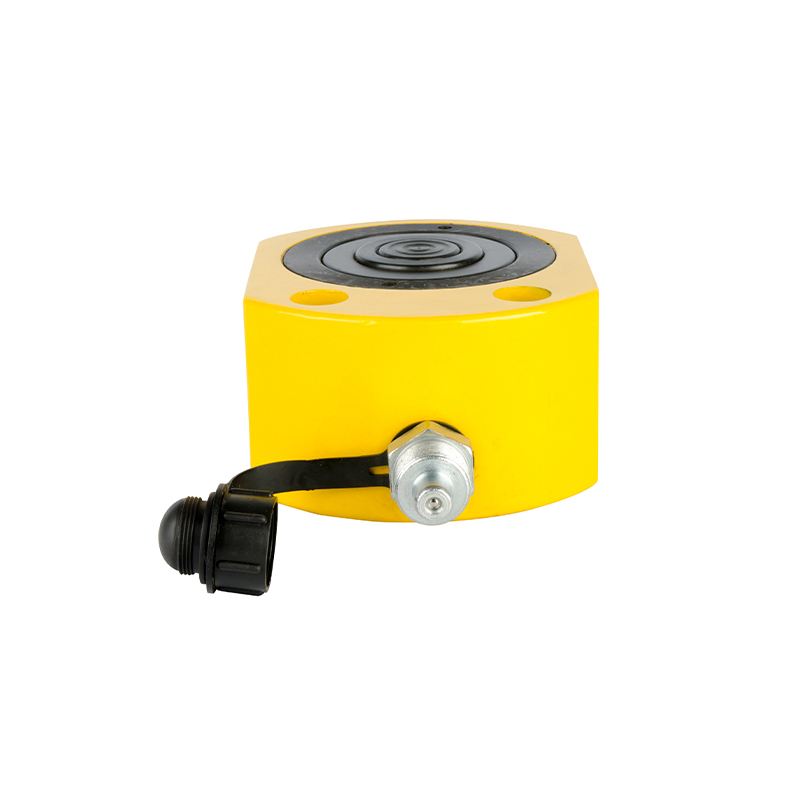

| Model | Total length | Stroke(mm) | Effective area(cm) | Ontology height(mm) | Extended height(mm) | outline dimension(mm) | cylinder Diameter(mm) | Screw Diameter(mm) | joint dimension | Weight(Kg) |

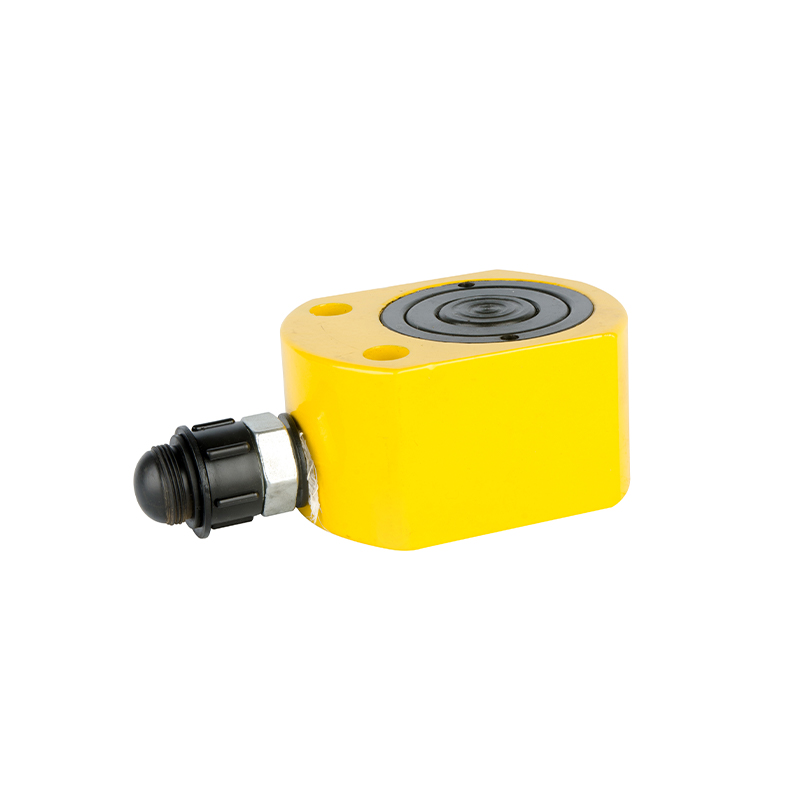

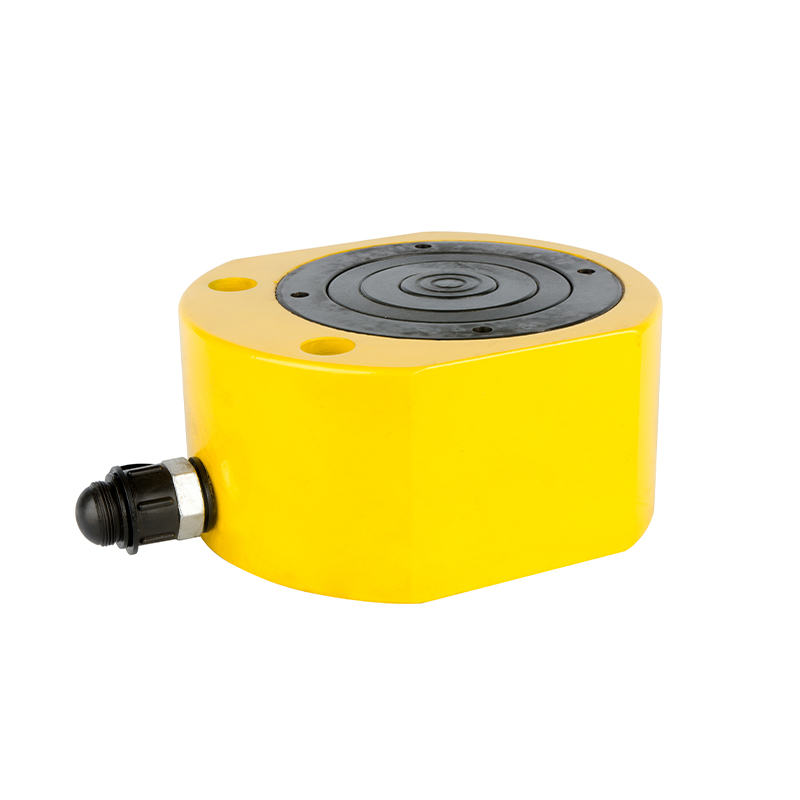

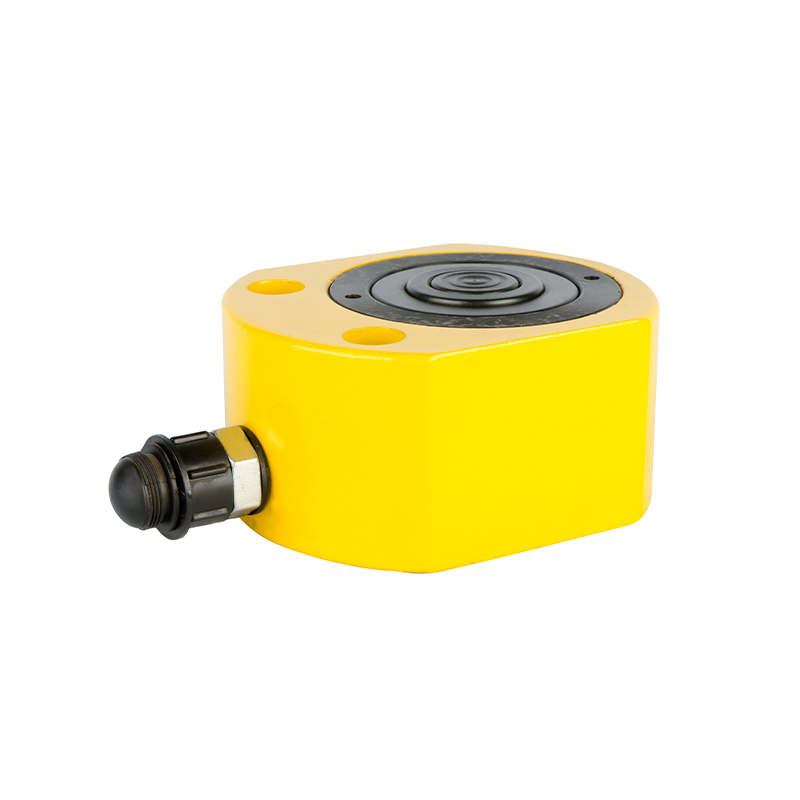

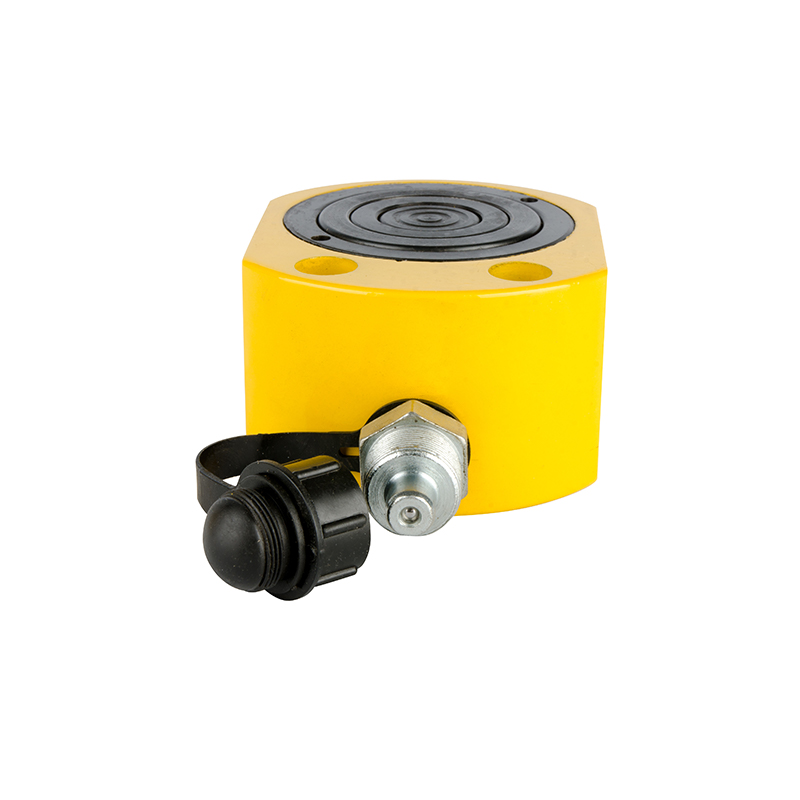

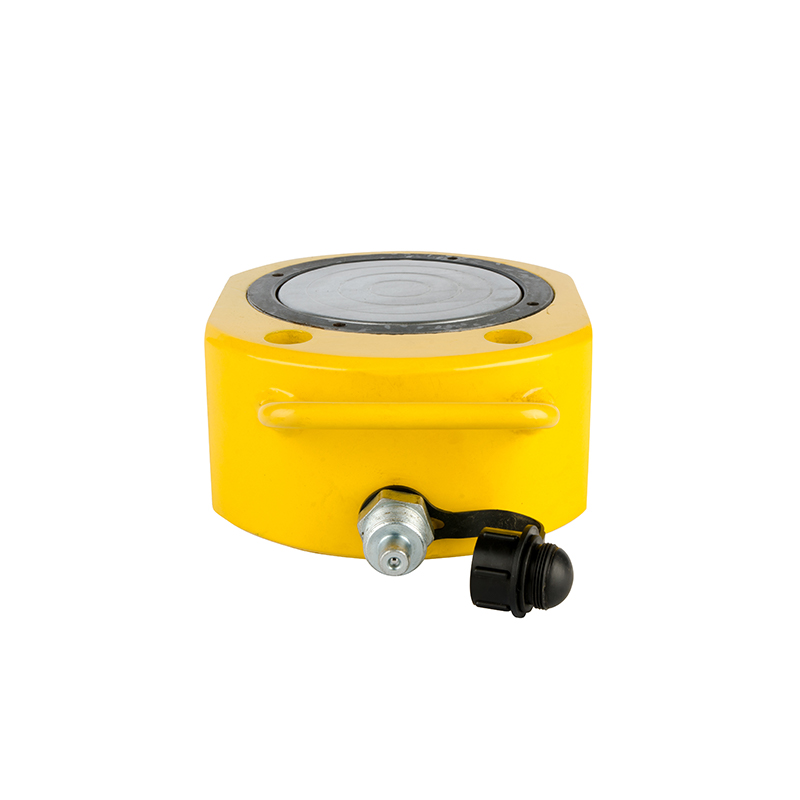

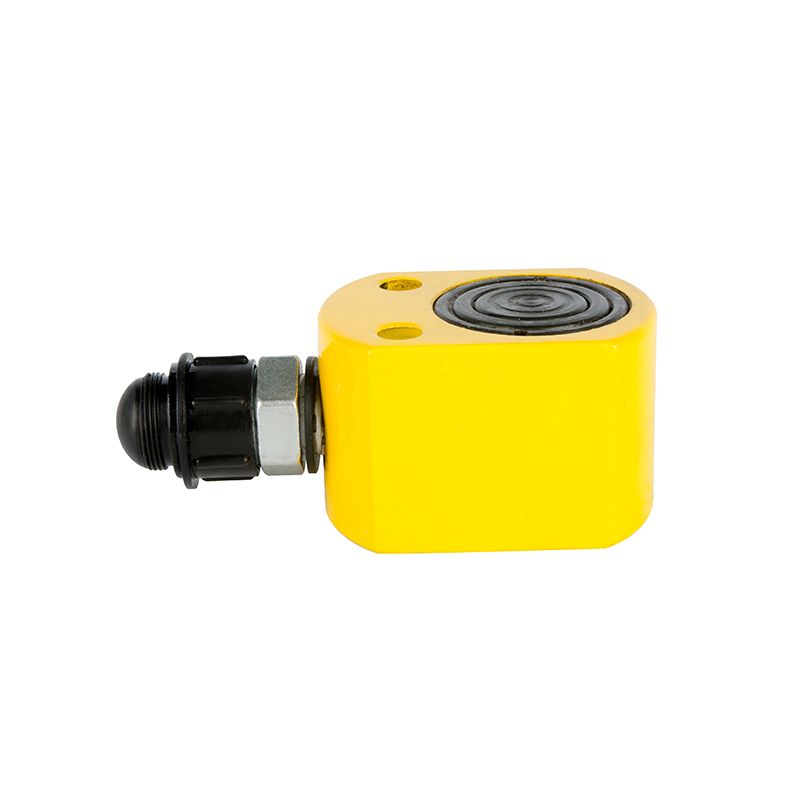

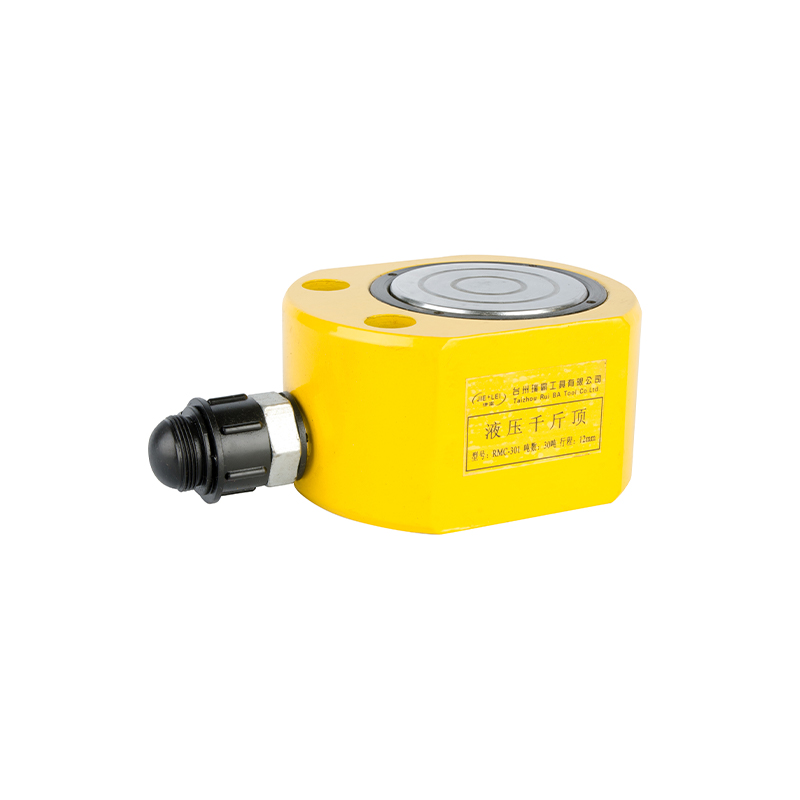

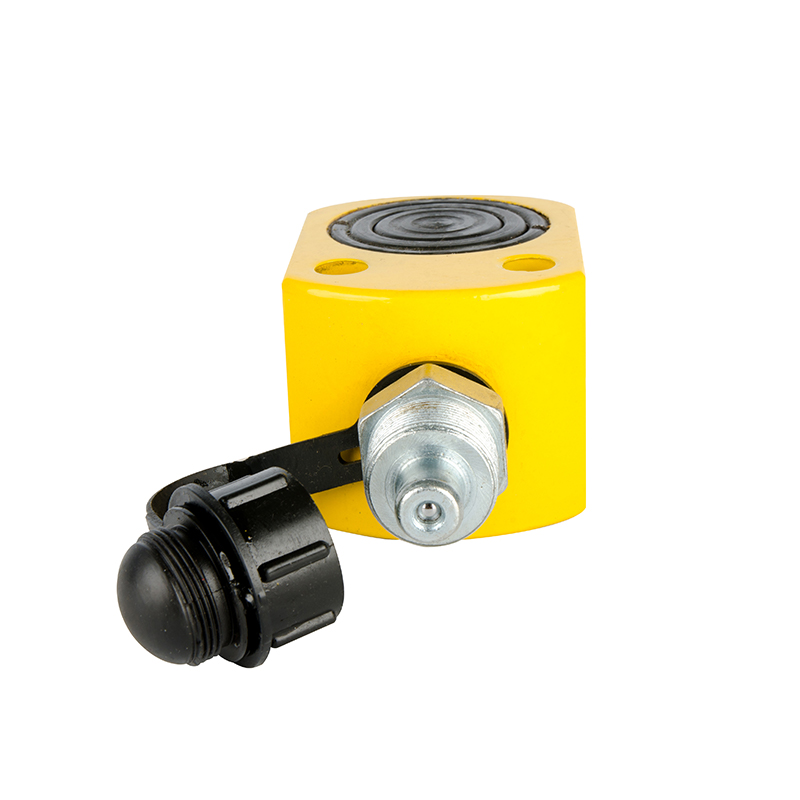

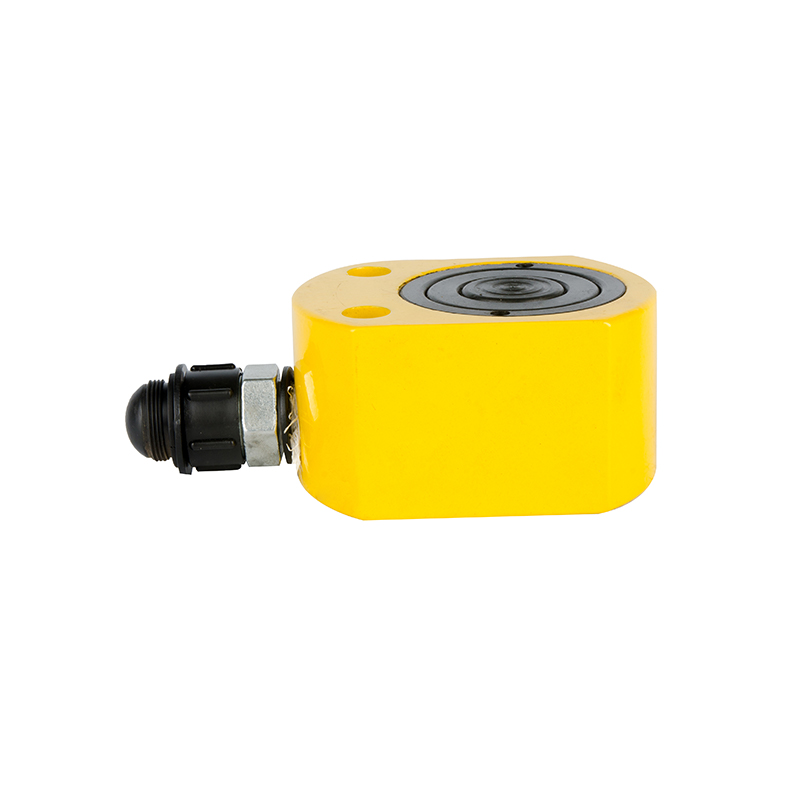

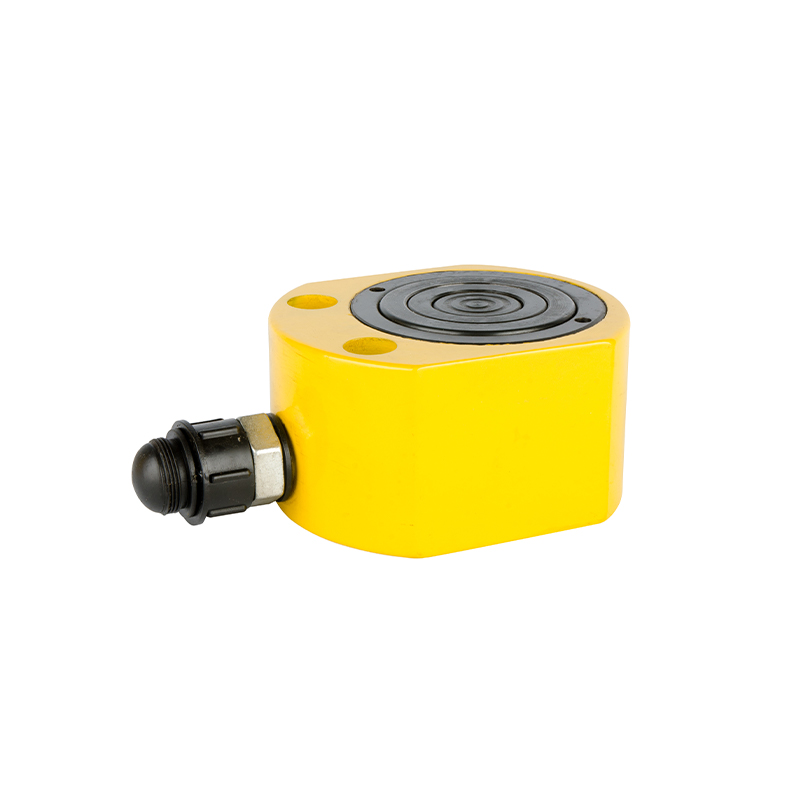

| RMC-101 | 10 | 11 | 11.3 | 48 | 58 | 81x59 | 45 | 38 | 3/8"-19 | 1.6 |
| RMC-201 | 20 | 11 | 22 | 53 | 63 | 105x80 | 60 | 53 | 3/8"-19 | 2.8 |

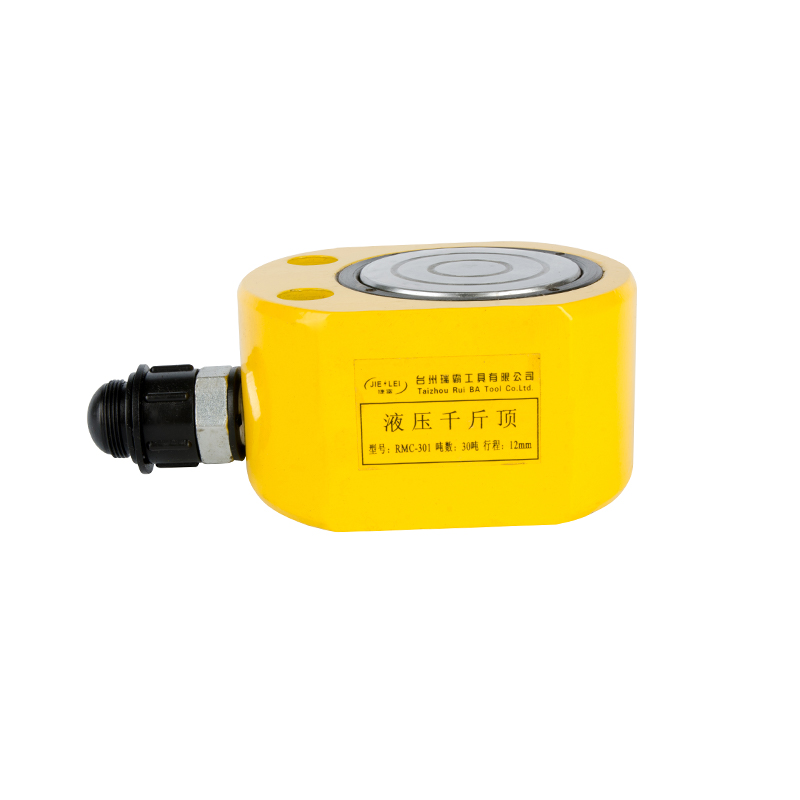

| RMC-301 | 30 | 12 | 31.1 | 64 | 75 | 117x97 | 75 | 63 | 3/8"-19 | 4.6 |

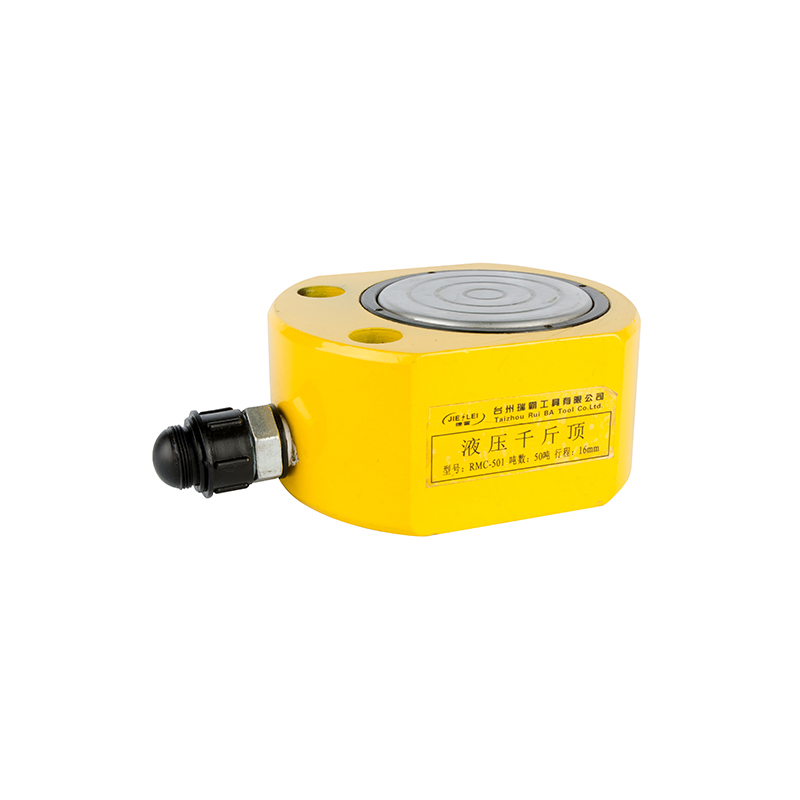

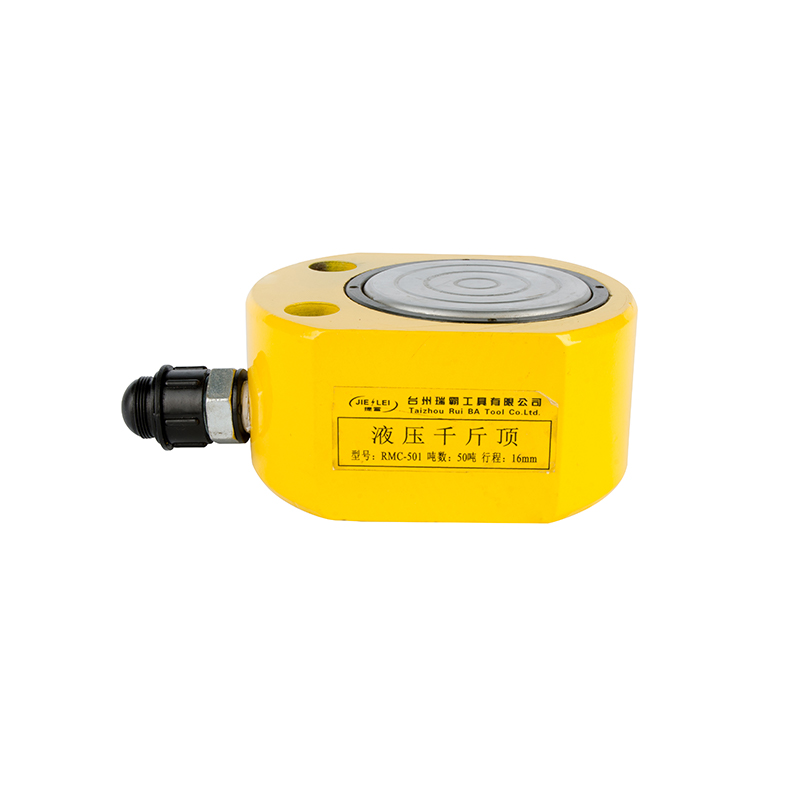

| RMC-501 | 50 | 16 | 56.7 | 70 | 85 | 145x120 | 95 | 85 | 3/8"-19 | 7.5 |

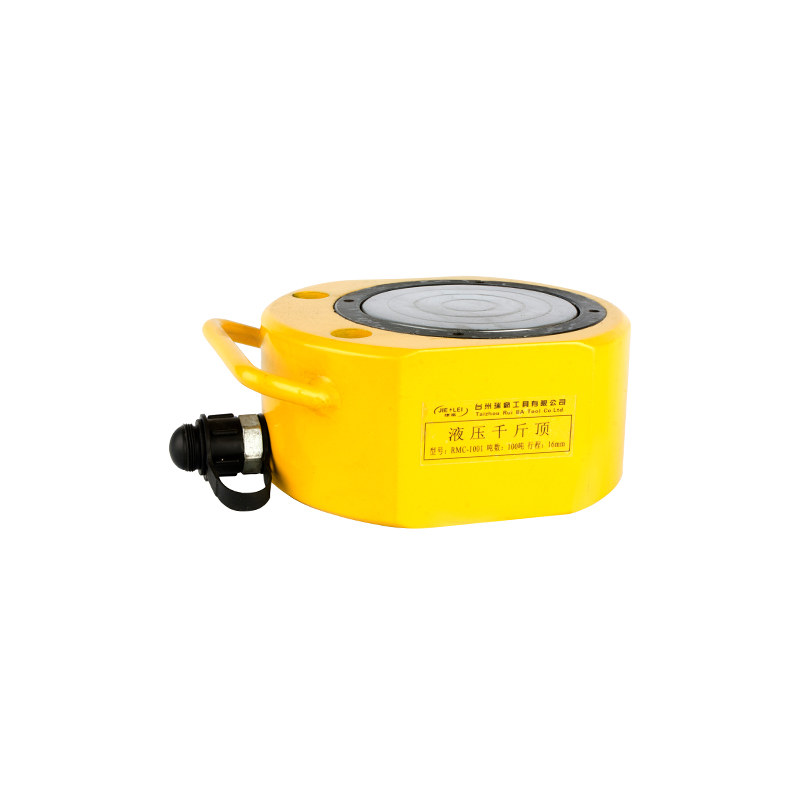

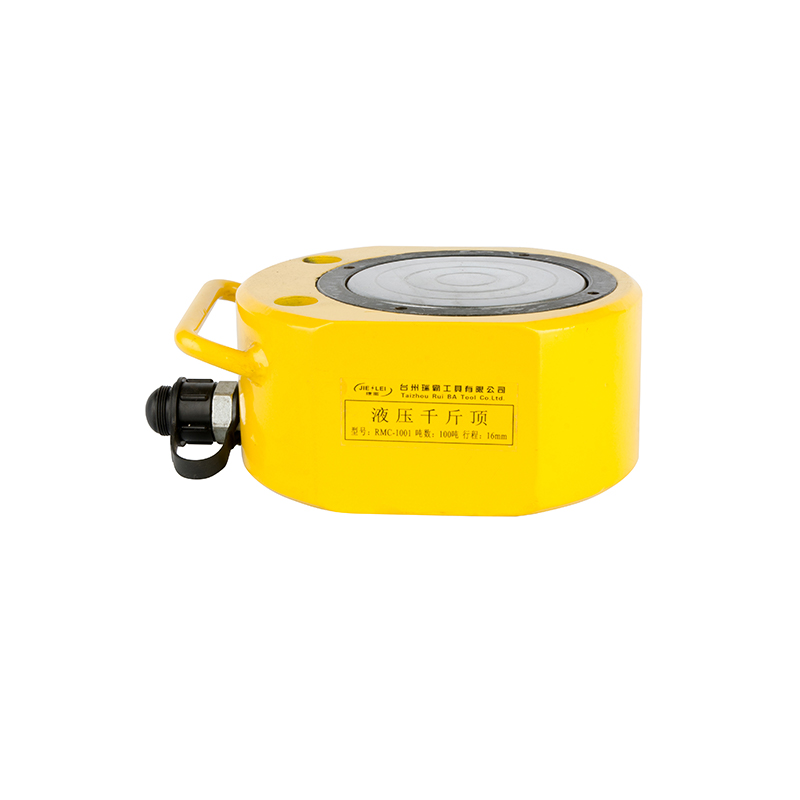

| RMC- 1001 | 100 | 16 | 95 | 88 | 102 | 185x160 | 130 | 110 | 3/8"-19 | 16 |
| RMC-2001 | 200 | 25 | 240 | 96 | 121 | 265x240 | 195 | 175 | 3/8"-19 | 37.5 |

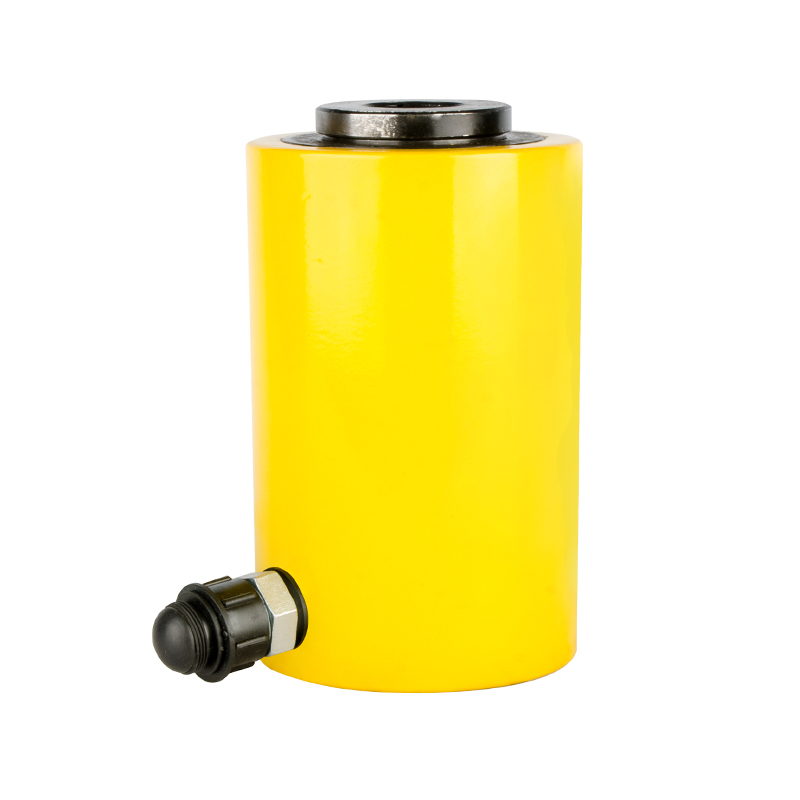

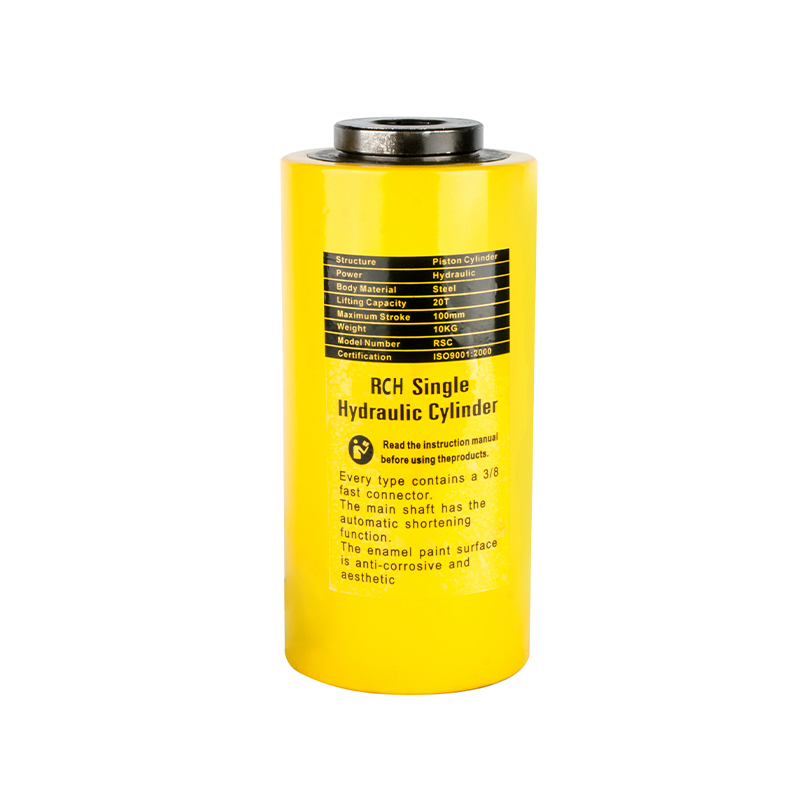

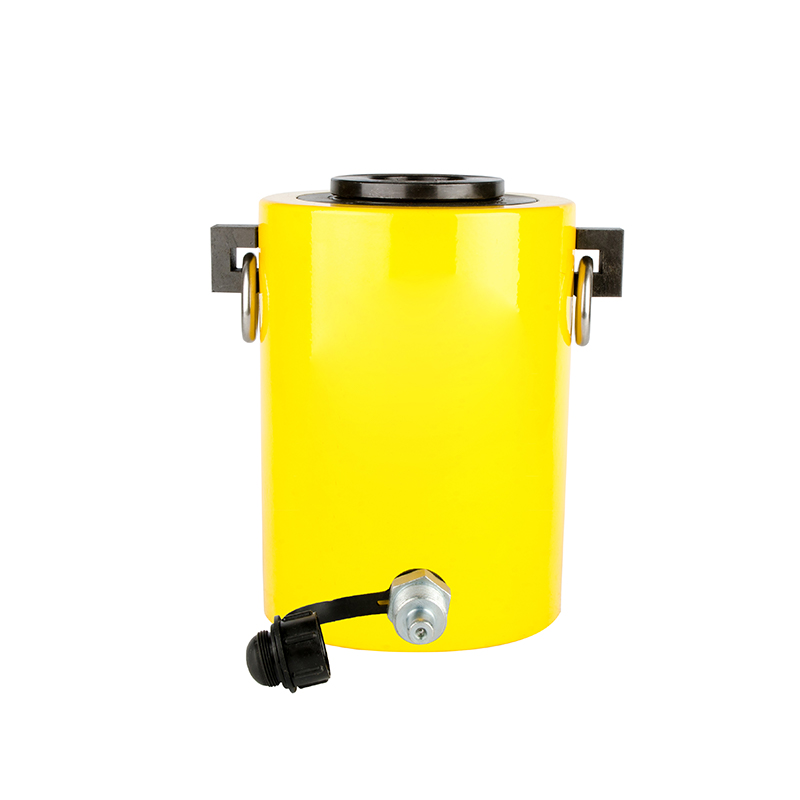

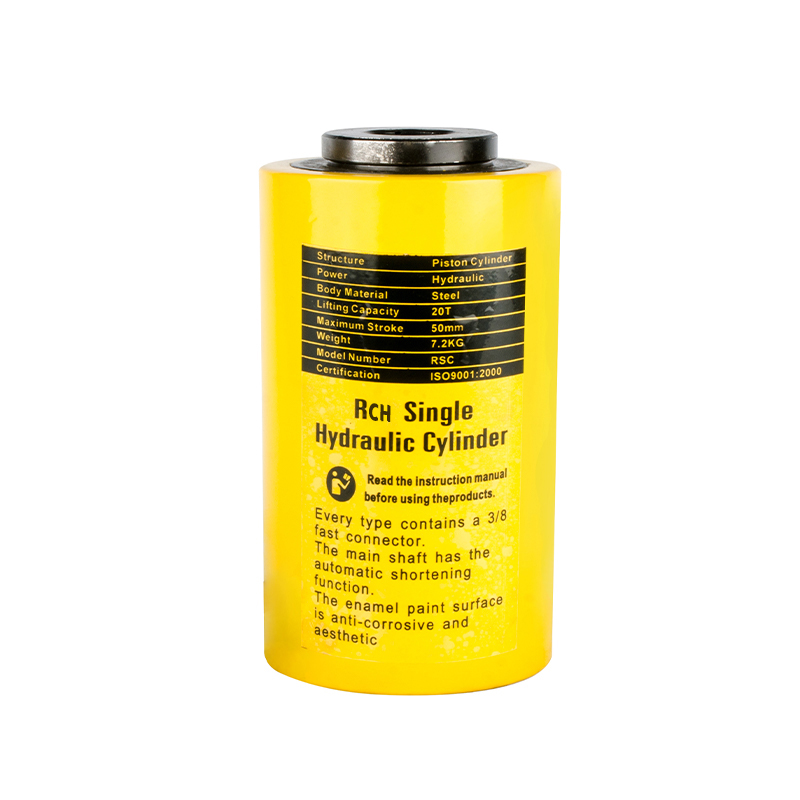

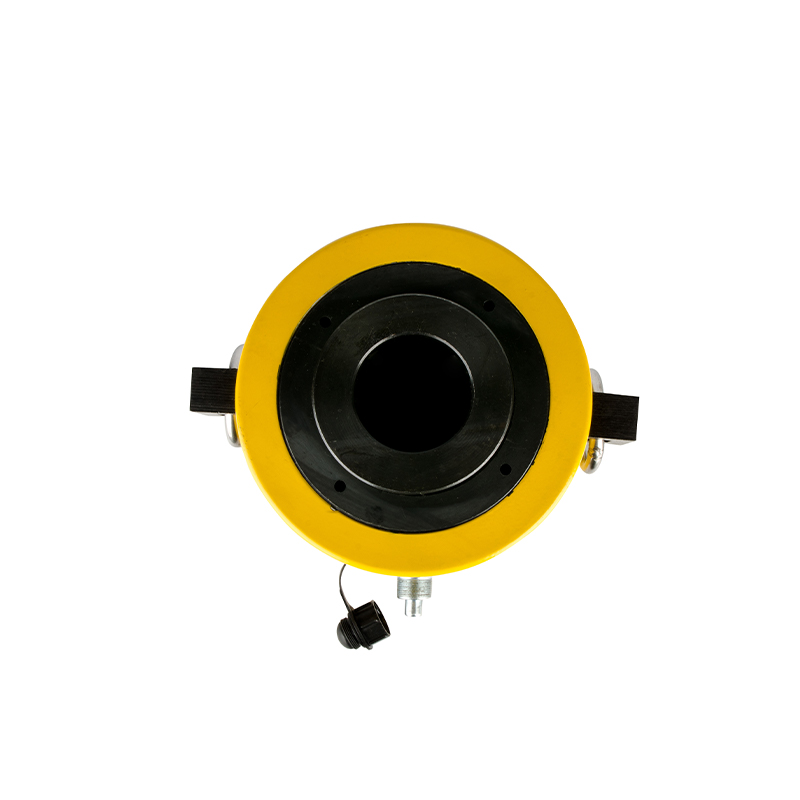

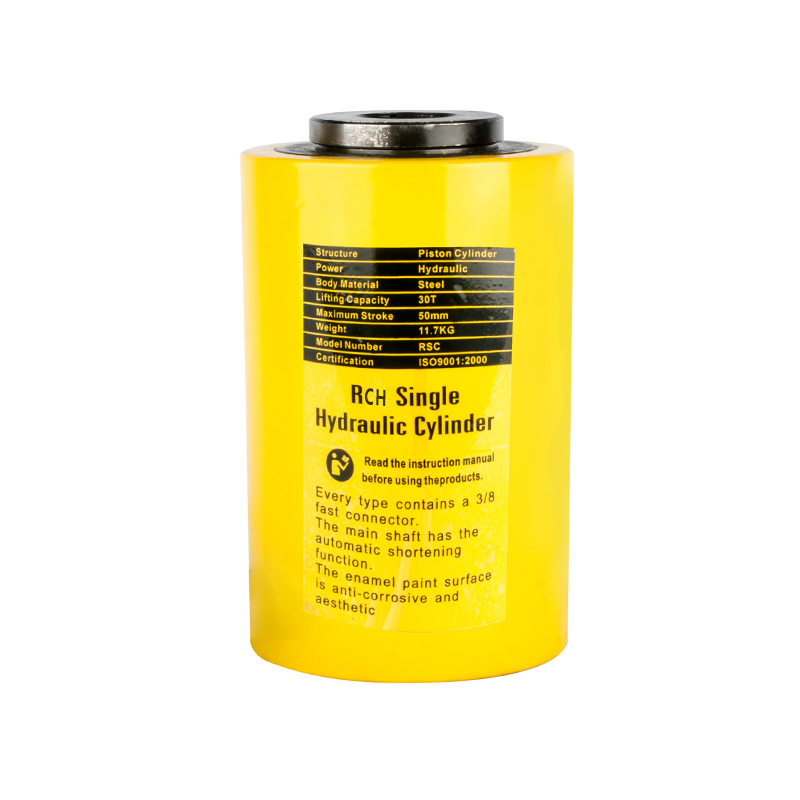

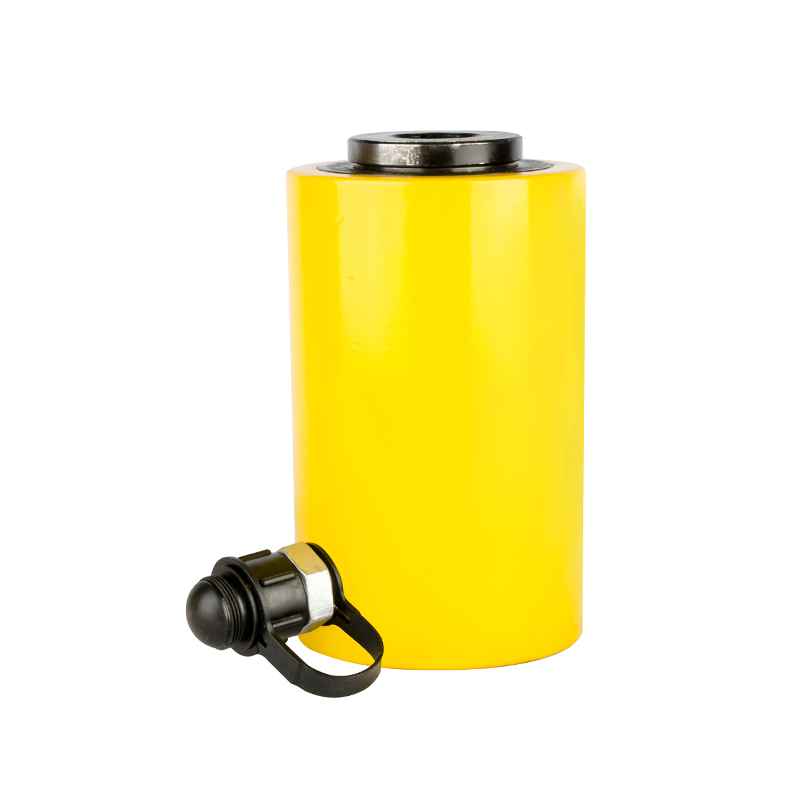

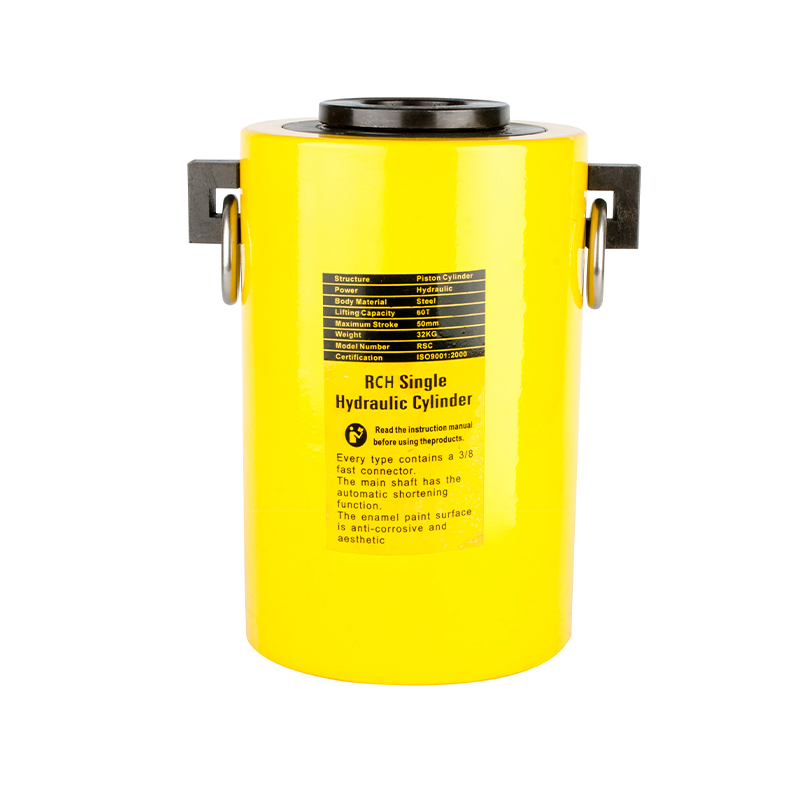

| Model | Total length | Stroke(mm) | Aperture (mm) | Inherent height(mm) | Embossment pitch(mm) | bore size(mm) | External diameter(mm) | Weight(Kg) |

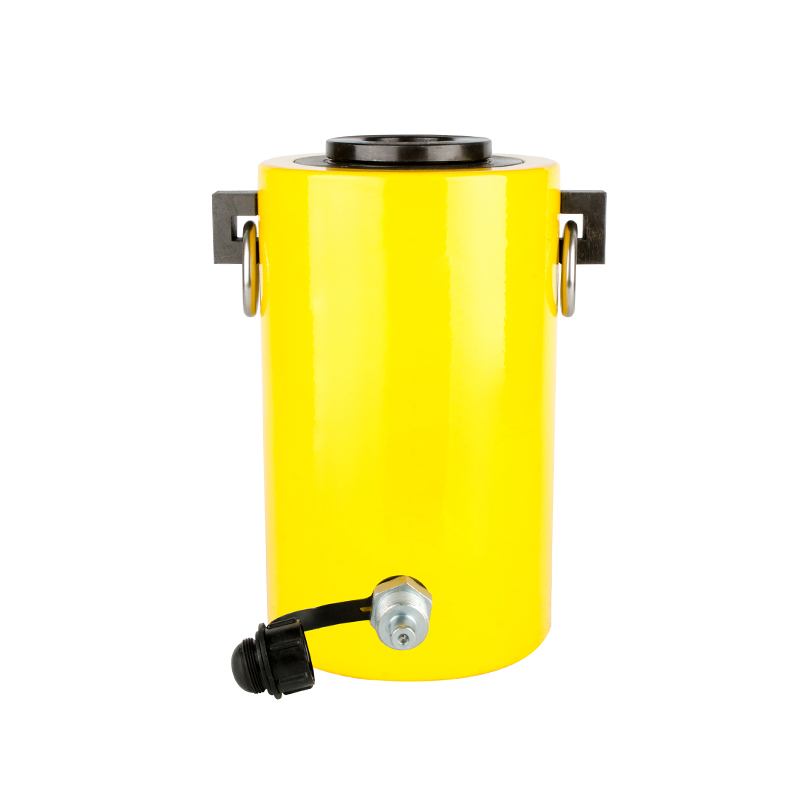

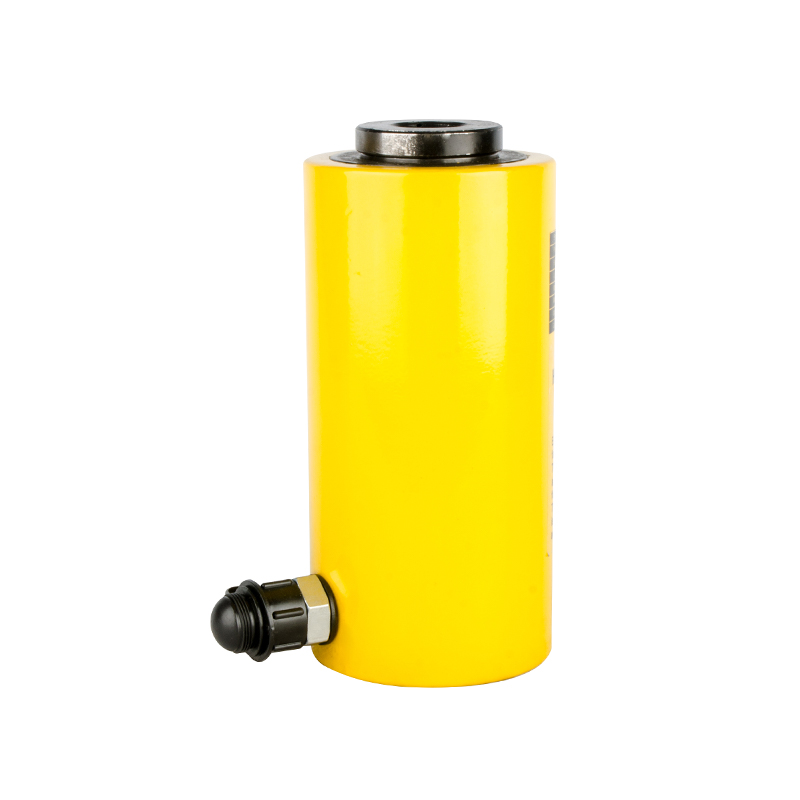

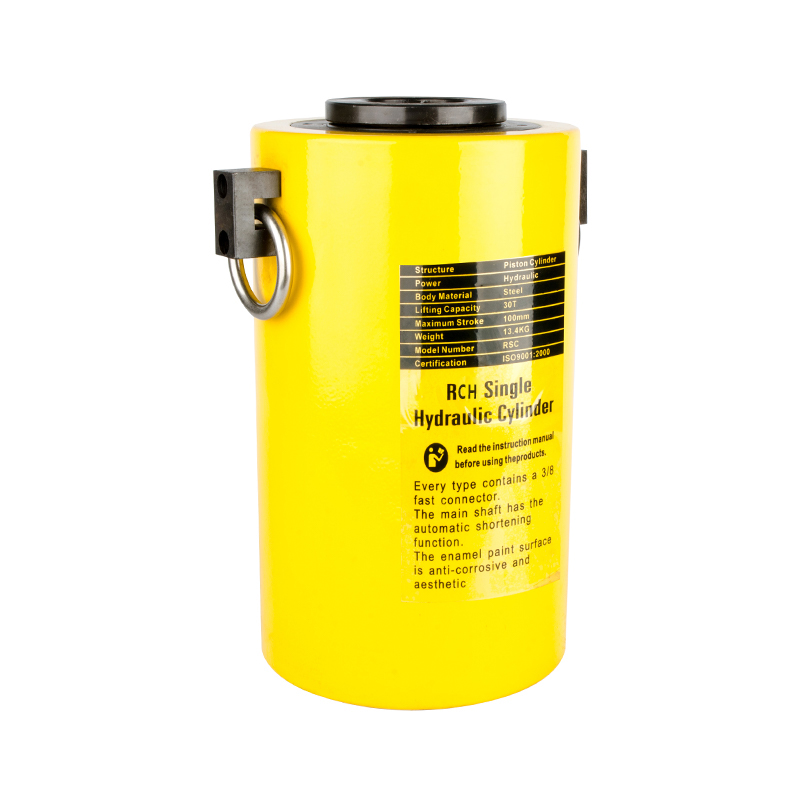

| RCH-2050 | 20 | 50 | 28 | 150 | 13 | 98 | 73 | 7.3 |
| RCH-20100 | 20 | 100 | 28 | 200 | 13 | 98 | 73 | 9.3 |
| RCH-3050 | 30 | 50 | 33 | 170 | 13 | 117 | 90 | 10.3 |
| RCH-30100 | 30 | 100 | 33 | 220 | 13 | 117 | 90 | 14.7 |
| RCH-30200 | 30 | 200 | 33 | - | 13 | - | - | - |
| RCH-6050 | 60 | 50 | 55 | 220 | 13 | 170 | 122 | 31 |
| RCH-60100 | 60 | 100 | 55 | 270 | 13 | 170 | 122 | 37.2 |
| RCH-60200 | 60 | 200 | 55 | - | 13 | 170 | 122 | - |

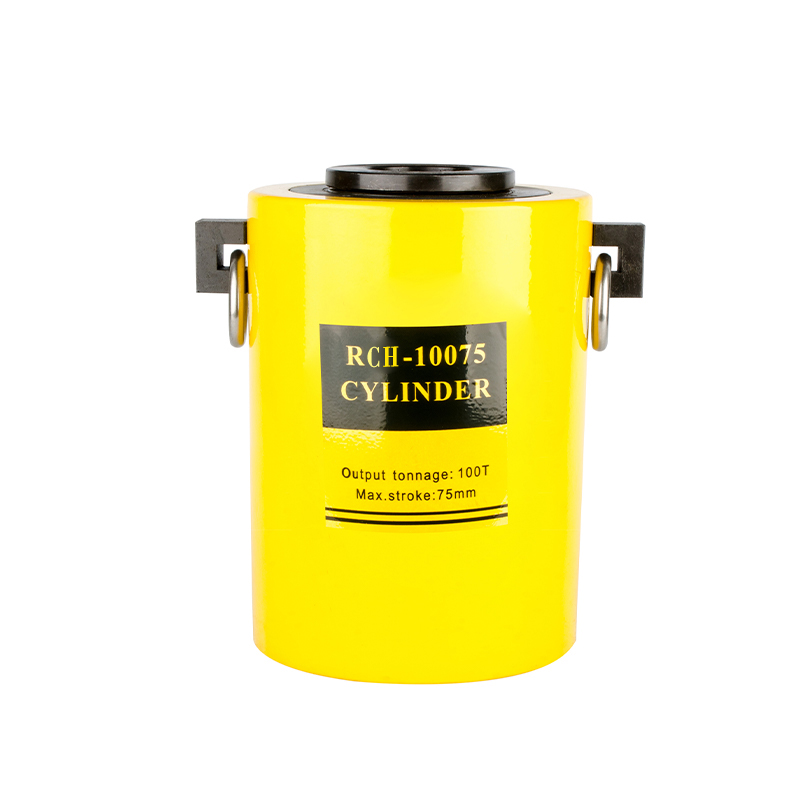

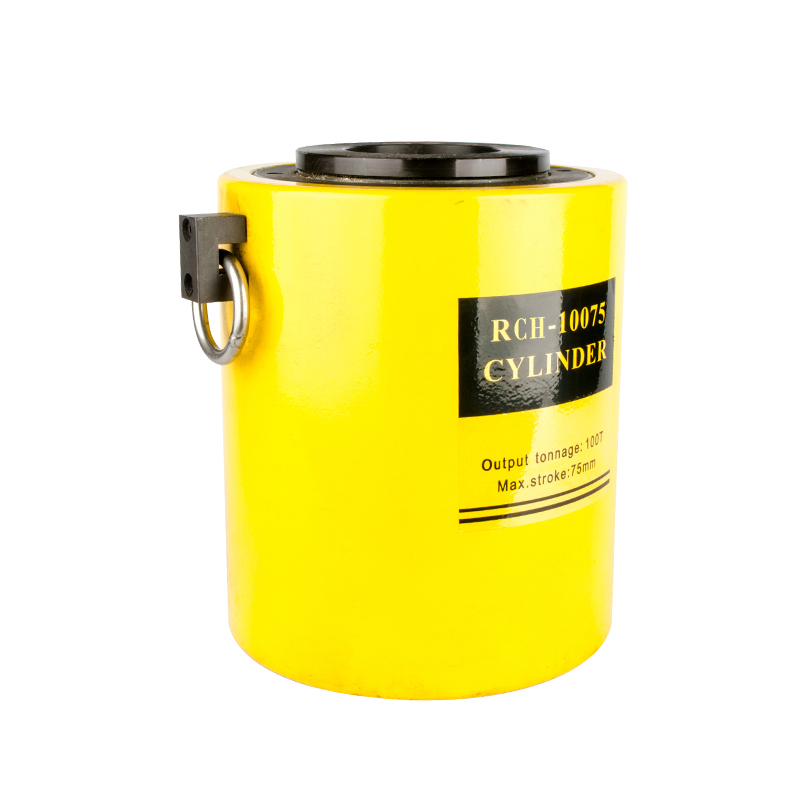

| RCH-10075 | 100 | 75 | 80 | 240 | 13 | 205 | 165 | 48 |

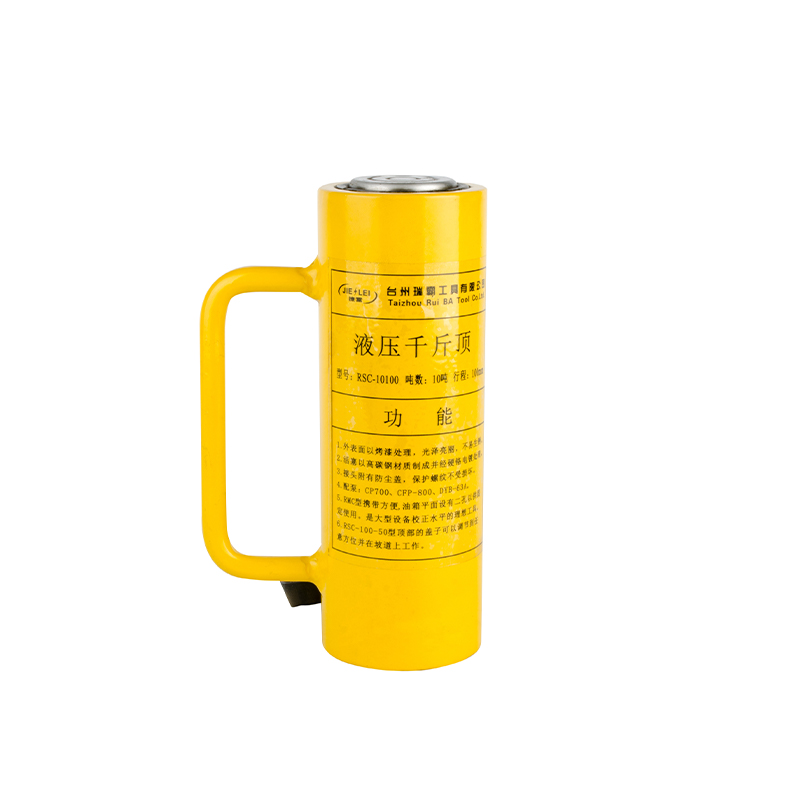

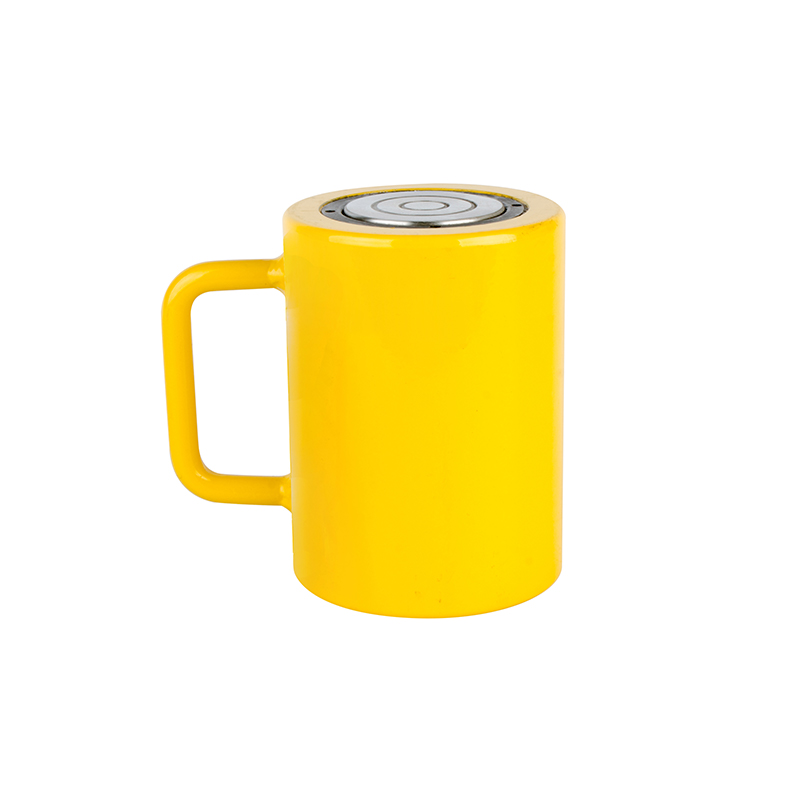

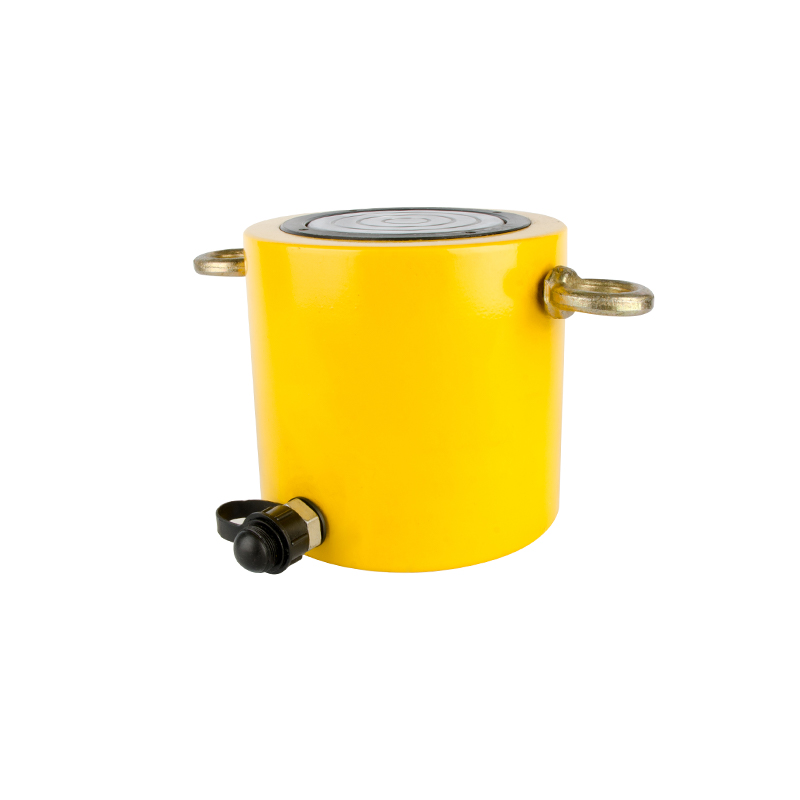

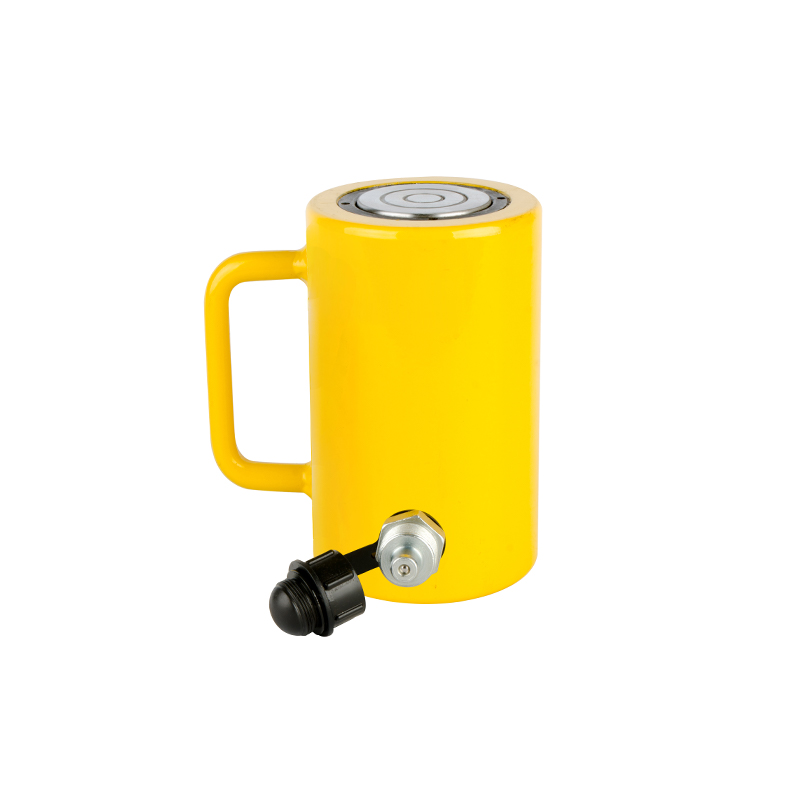

| Model | Total length | Stroke(mm) | Effective area(cm) | Ontology height(mm) | Extended height(mm) | outline dimension(mm) | cylinder Diameter(mm) | Screw Diameter(mm) | joint dimension | Weight(Kg) |

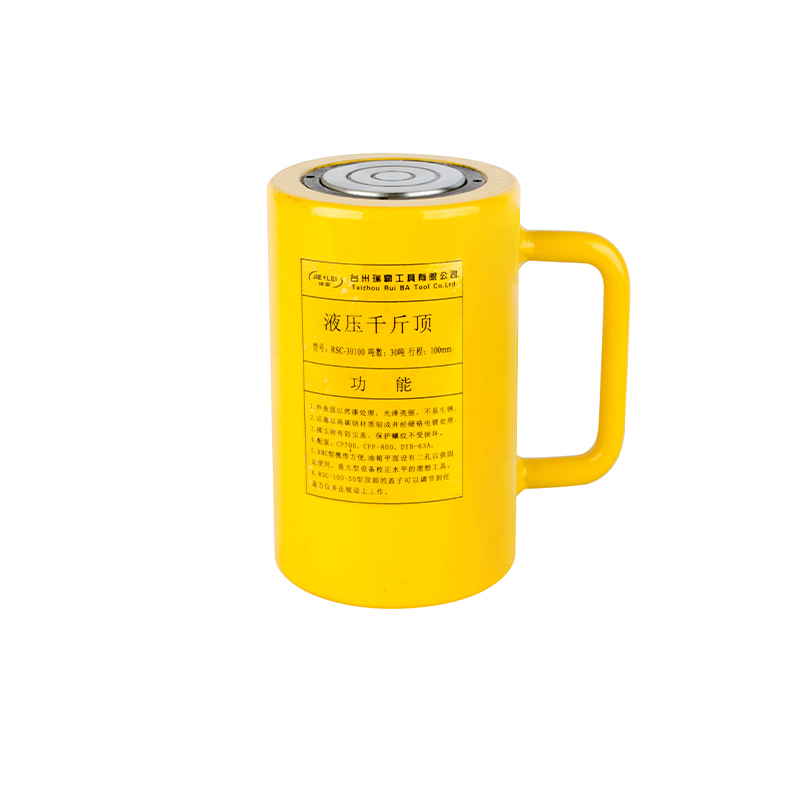

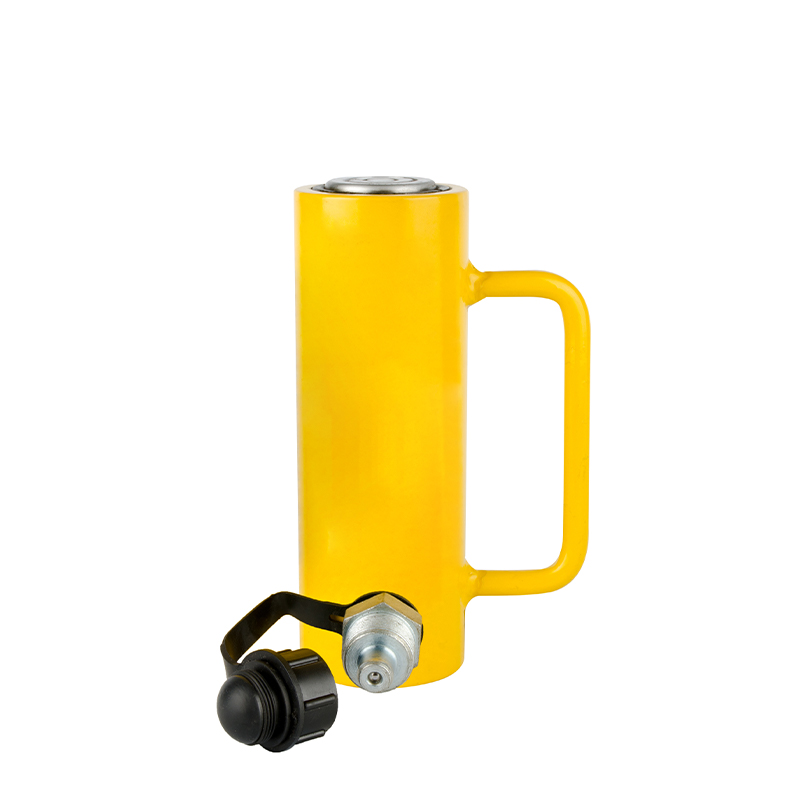

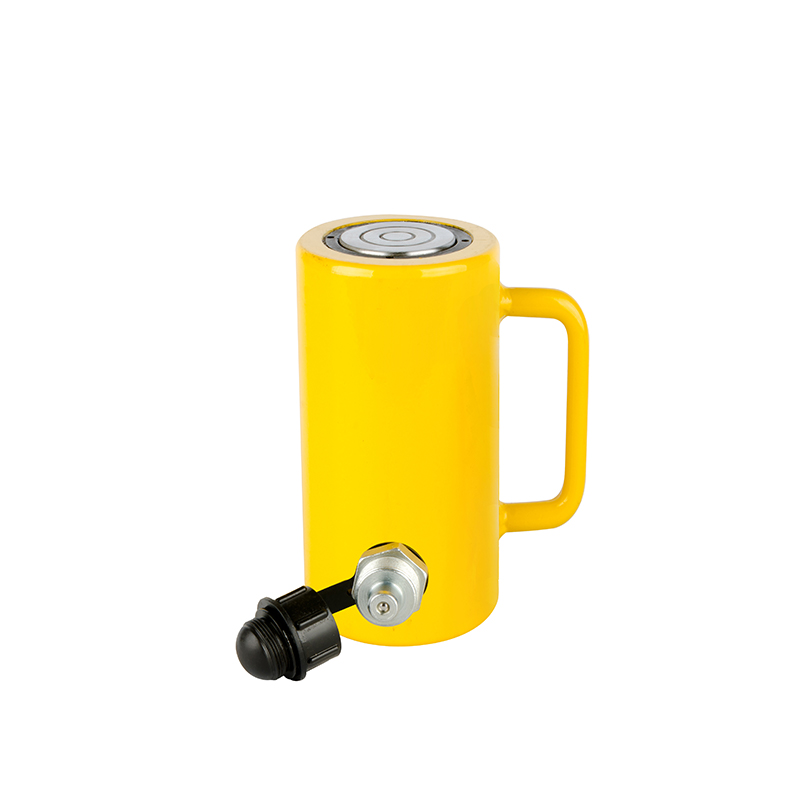

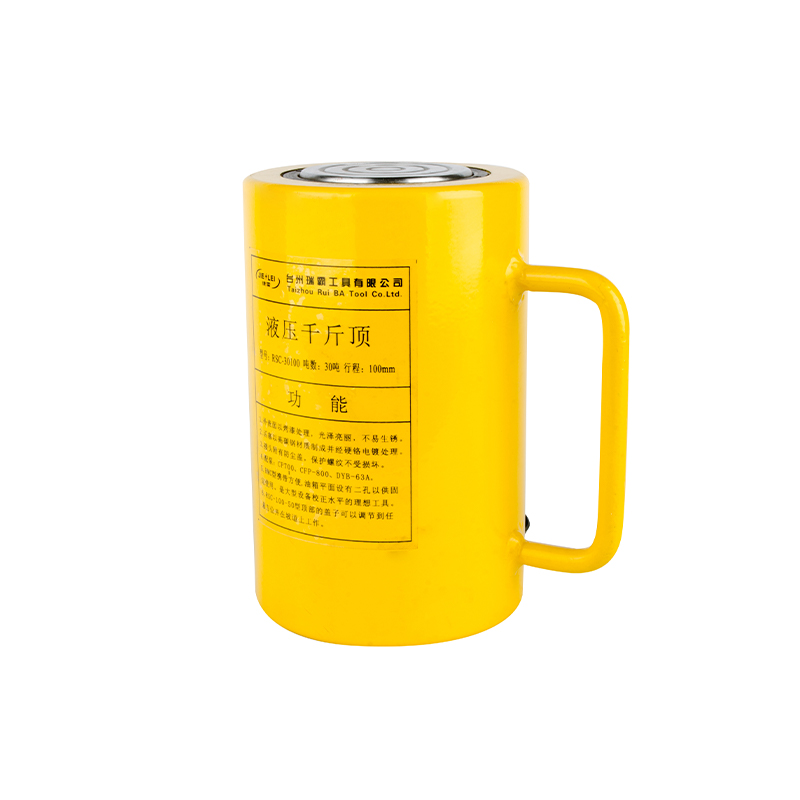

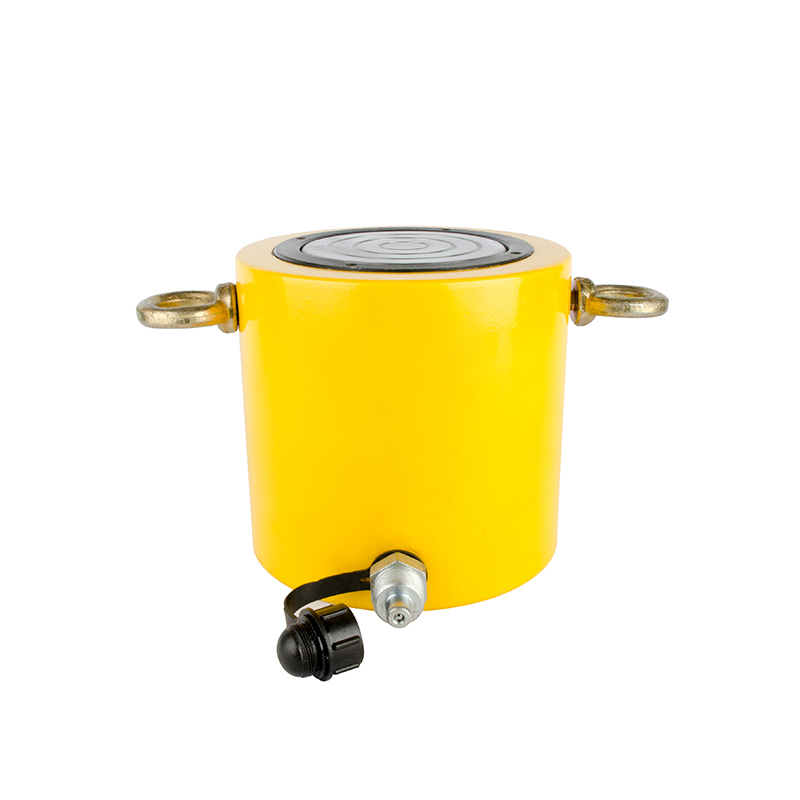

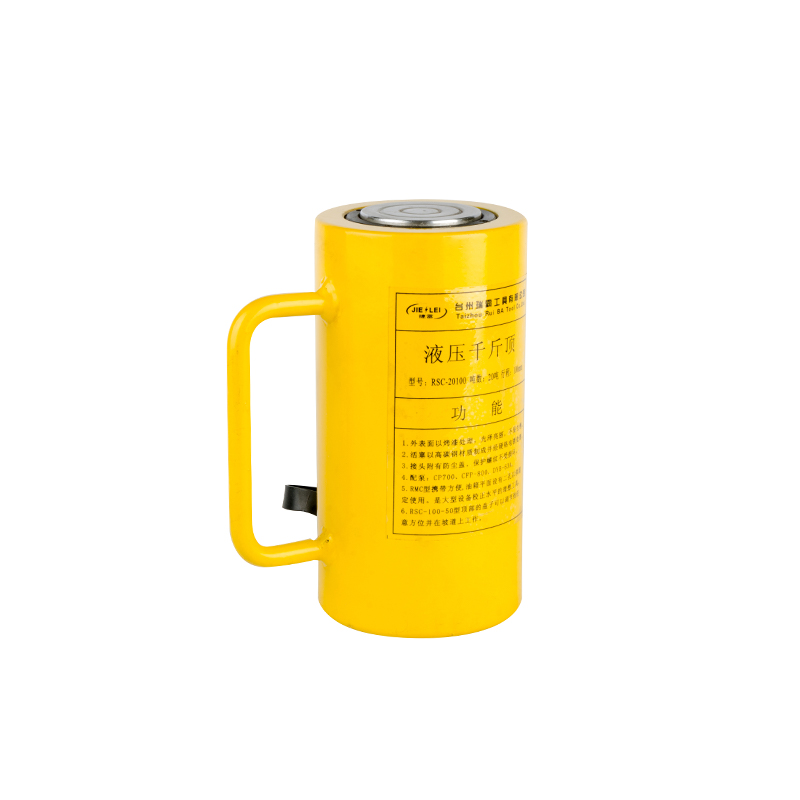

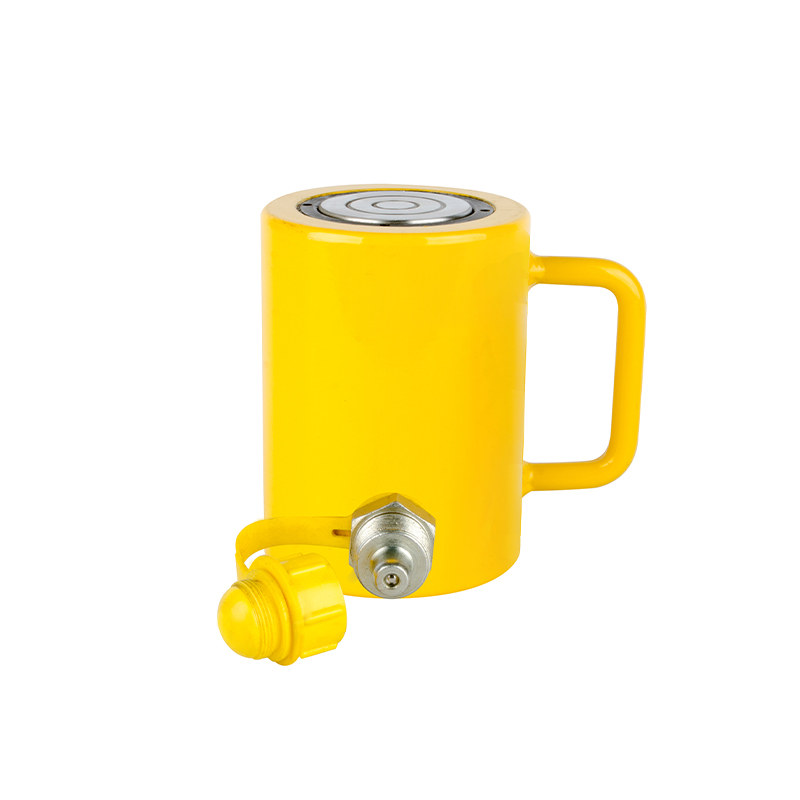

| RSC-1050 | 10 | 50 | 13.8 | 121 | 239 | 63 | 45 | 38 | 3/8"-19 | 3 |
| RSC-10100 | 10 | 100 | 13.8 | 171 | 389 | 63 | 45 | 38 | 3/8*-19 | 4 |
| RSC-10150 | 10 | 150 | 13.8 | 222 | 539 | 63 | 45 | 38 | 3/8"-19 | 5 |
| RSC-2050 | 20 | 50 | 26.4 | 121 | 407 | 88 | 60 | 58 | 3/8"-19 | 5.5 |
| RSC-20100 | 20 | 100 | 26.4 | 171 | 557 | 88 | 60 | 58 | 3/8"-19 | 7.2 |
| RSC-20150 | 20 | 150 | 26.4 | 222 | 257 | 88 | 60 | 58 | 3/8"-19 | 9 |
| RSC-3050 | 30 | 50 | 41.8 | 121 | 407 | 108 | 75 | 68 | 3/8"-19 | 8.3 |
| RSC-30100 | 30 | 100 | 41.8 | 171 | 361 | 108 | 75 | 68 | 3/8"-19 | 11 |
| RSC-30150 | 30 | 150 | 41.8 | 222 | 261 | 108 | 75 | 68 | 3/8"-19 | 14 |
| RSC-5050 | 50 | 50 | 78.5 | 121 | 361 | 128 | 95 | 85 | 3/8"-19 | 11.3 |
| RSC-50100 | 50 | 100 | 78.5 | 171 | 171 | 128 | 95 | 85 | 3/8"-19 | 15 |
| RSC-50150 | 50 | 150 | 78.5 | 222 | 271 | 128 | 95 | 85 | 3/8"-19 | 19.5 |
| RSC-10050 | 100 | 50 | 103.8 | 121 | 371 | 178 | 130 | 110 | 3/8"-19 | 22.5 |

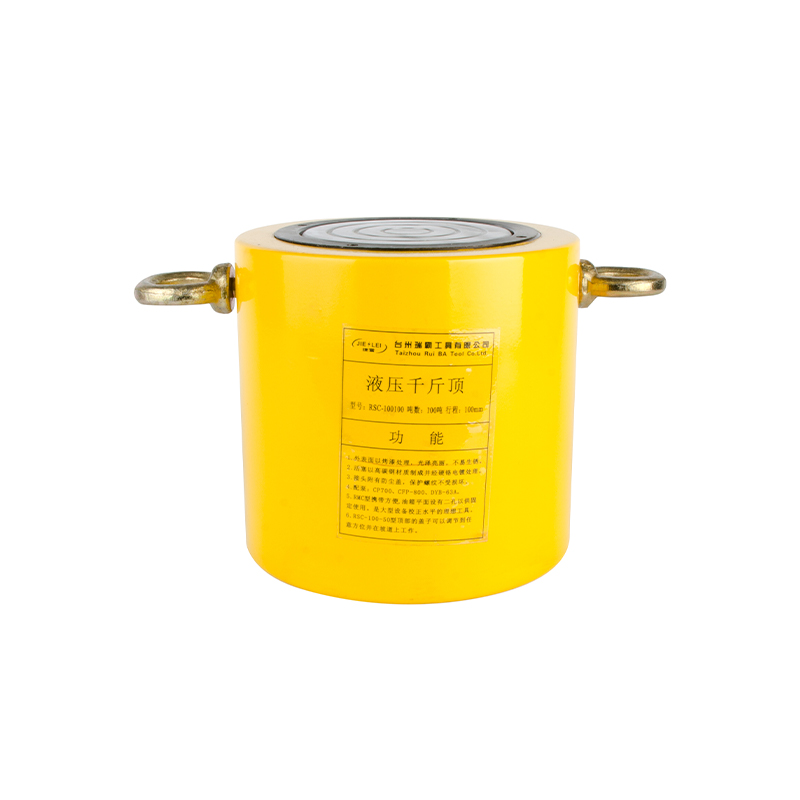

| RSC-100100 | 100 | 100 | 103.8 | 171 | - | 178 | 130 | 110 | 3/8"-19 | 29.5 |
| RSC-100150 | 100 | 150 | 103.8 | 222 | - | 178 | 130 | 110 | 3/8"-19 | 37.5 |
| RSC-15050 | 150 | 50 | - | 168 | - | 218 | 170 | - | 3/8"-19 | 48.0 |
| RSC-150100 | 150 | 100 | - | 195 | - | 218 | 170 | - | 3/8"-19 | 46.0 |
| RSC-150150 | 150 | 150 | - | 290 | - | 218 | 170 | - | 3/8"-19 | 67.5 |
| RSC-20050 | 200 | 50 | - | 168 | - | 248 | 190 | - | 3/8"-19 | 58.0 |
| RSC-200100 | 200 | 100 | - | 205 | - | 248 | 190 | - | 3/8"-19 | 65.3 |
| RSC-200150 | 200 | 150 | - | 290 | - | 248 | 190 | - | 3/8"-19 | 94.5 |
| Model | Total length | Stroke(mm) | Ontology height(mm) | bore size(mm) | External diameter(mm) | Weight(Kg) |
| DFPY-10 | 10 | 25 | 51 | 45 | 81x60 | 1.7 |
| DFPY-20 | 20 | 30 | 55 | 60 | 105x80 | 3 |
| DFPY-30 | 30 | 70 | 70 | 90 | 145x120 | 7.5 |
| DFPY-50 | 50 | 75 | 80 | 126 | 185x160 | 16 |
| DFPY-100 | 100 | - | - | - | - | - |
