Split Type Hydraulic Pipe Bender: The Backbone of On-Site Pipe Bending

Bending pipe on-site is a challenge. You can't always bring the pipe to the bender. Sometimes the bender has to go to the pipe. A split type hydraulic pipe bender solves that. The tool splits into two parts—a power unit and a bending head. The bending head goes to the pipe, and the power unit connects to it with hoses. Split type hydraulic pipe bender manufacturers build these tools for applications where you need to bend pipe in place.

The Tool Splits So the Bender Goes to the Pipe

The power unit and bending head are separate components

The bender splits into two parts connected by hydraulic hoses. Split type hydraulic pipe bender manufacturers design the power unit and bending head as separate components. The bending head is compact enough to fit into tight spaces where the pipe is located. The power unit sits elsewhere—on the floor, on a cart, or wherever it's convenient.

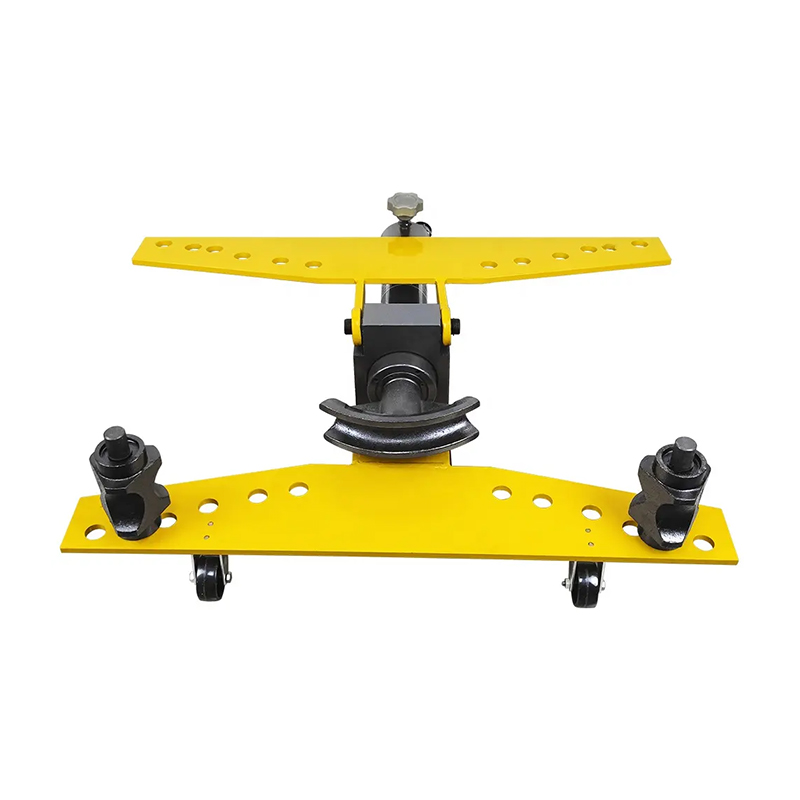

The bending head clamps onto the pipe at the bend point

The pipe doesn't have to be removed from the installation. Split type hydraulic pipe bender manufacturers design the bending head to clamp onto the pipe at the exact point where the bend is needed. The head stays in position while the ram does the work.

The power unit connects to the bending head through hydraulic hoses

The connection between the two parts is flexible. Split type hydraulic pipe bender manufacturers supply hoses that reach from the power unit to the bending head. The hoses carry hydraulic fluid to the ram, so the bending force is delivered exactly where it's needed.

Common specs for split type hydraulic pipe benders:

• Pipe capacity: up to 4" schedule 40
• Bending force: up to 20 tons
• Bend angle: up to 90 degrees
• Power unit: electric or manual
• Hose length: up to 10 meters
• Weight: varies by model

The Hydraulic System Delivers the Bending Force

Hydraulic pressure drives the bending ram smoothly

The bender uses hydraulic force to push the pipe around the former. Split type hydraulic pipe bender manufacturers design the hydraulic system to deliver the force needed for the pipe size and material. The ram moves steadily, without jerking or hesitation.

The ram moves around a former for accurate bends

The pipe is bent around a former of the correct radius. Split type hydraulic pipe bender manufacturers design the former to match the pipe size and bend radius. The pipe conforms to the former shape for accurate, consistent bends.

The pressure is controlled to prevent kinking or flattening

Too much pressure deforms the pipe. Too little and the bend doesn't take. Split type hydraulic pipe bender manufacturers design the control system to apply the right pressure for the pipe size and wall thickness. The pipe bends without kinking or flattening.

Applications Where Split Pipe Benders Are Essential

Plumbing installations where pipe has to route around obstacles

Pipe has to go around beams, columns, and existing systems. Split type hydraulic pipe bender manufacturers supply benders that bend pipe on-site without removing it from the installation. The pipe is bent where it sits.

HVAC systems in mechanical rooms and ceiling spaces

Heating and cooling pipe runs are often in tight spaces. Split type hydraulic pipe bender manufacturers build benders that work in mechanical rooms and ceiling spaces where full-size benders won't fit.

Industrial process piping for larger pipe sizes

Process pipe lines need bends that are accurate and consistent. Split type hydraulic pipe bender manufacturers provide benders that handle larger pipe sizes and heavier wall thicknesses than portable benders.

Shipbuilding and marine pipe runs

Pipe runs on ships are complex and often in confined spaces. Split type hydraulic pipe bender manufacturers supply benders that work in cramped conditions on installed pipe.

What to Look For in a Split Bender

The bender has to handle the pipe sizes you work with

Pipe capacity is the first thing to check. Split type hydraulic pipe bender manufacturers should offer models that cover the pipe sizes you work with. If the bender doesn't fit the pipe, it's useless.

The bending force has to match the pipe material and wall thickness

Thicker pipe needs more force. Split type hydraulic pipe bender manufacturers should specify the bending force for each model.

The hose length has to reach from the power unit to the bending head

If the hoses are too short, you can't position the power unit where you need it. Split type hydraulic pipe bender manufacturers should offer hose lengths that suit the work environment.

The big bend angle has to meet your requirements

Some jobs need more than 90 degrees. Split type hydraulic pipe bender manufacturers should specify the big bend angle.

The tool has to be portable enough for field use

You're carrying it to the job. Split type hydraulic pipe bender manufacturers should build tools that are movable on-site.

The tool has to hold up to daily use in demanding conditions

Split type hydraulic pipe bender manufacturers should build tools that survive drops, dirt, and moisture. A tool that fails on the job is a tool that costs you time and money.

A split type hydraulic pipe bender is a tool that bends pipe where it sits. The split design lets you bring the bender to the pipe. Split type hydraulic pipe bender manufacturers build tools for on-site bending. That's what makes them essential.
